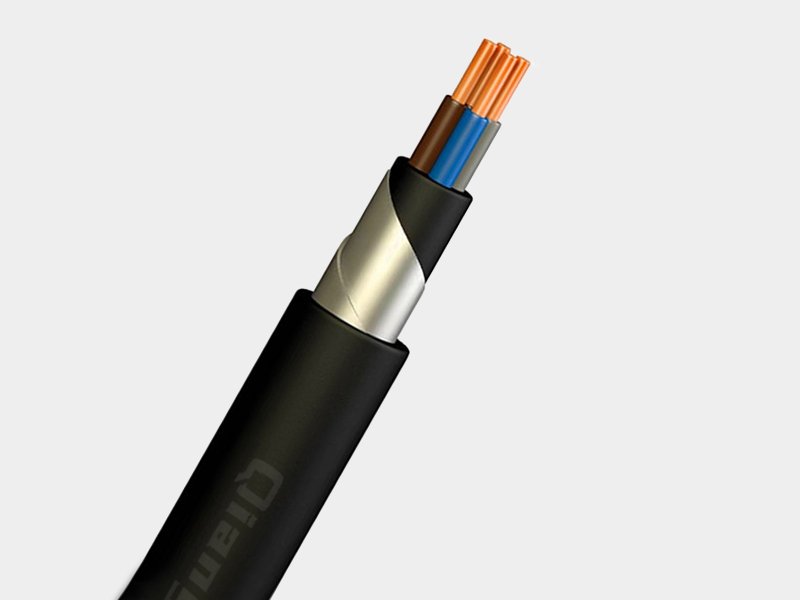

N2XBH Cable
Conductor: Copper, Class 2 stranded to EN 60228
Insulation: XLPE (2X), rated 90°C
Armour: Double galvanized steel tape
Sheath: HFFR/LSZH (H), halogen-free, low smoke
Voltage: 0.6/1kV
Number of cores: 2-5 cores
Package: Iron-wooden drum & heavy-duty wooden drum
Product Overview
N2XBH Cable is a 0.6/1kV XLPE-insulated power cable with double galvanized steel tape armor and HFFR (Halogen-Free Flame Retardant) / LSZH (Low Smoke Zero Halogen) outer sheath. VDE naming: N = standard type, 2X = XLPE insulation, B = steel tape armor, H = halogen-free. Unlike N2XB2Y which uses an HDPE sheath, N2XBH uses an LSZH compound — making it the mandatory cable type for public buildings, hospitals, schools, cinemas, tunnels, and any installation where fire safety regulations prohibit halogenated materials. In a fire, N2XBH emits very low smoke (IEC 61034) and no corrosive halogen gases (IEC 60754), protecting both human evacuation routes and sensitive electronic equipment.
N2XB2Y vs N2XBH: Sheath Selection Guide
| Property | N2XB2Y (HDPE Sheath) | N2XBH (HFFR/LSZH Sheath) |
|---|---|---|
| Sheath Material | HDPE (2Y) | HFFR / LSZH (H) |
| Halogen Content | None in HDPE itself | Zero halogen — IEC 60754 certified |
| Smoke Emission | Standard | Very low — IEC 61034 certified |
| Corrosive Gas in Fire | Low (no PVC) | None — passes IEC 60754-2 |
| Flame Retardancy | Single cable (EN 60332-1-2) | Bundled cable Cat. C (IEC 60332-3-24) |
| Moisture Resistance | Excellent | Good — but HDPE is superior for permanent immersion |
| Primary Application | Direct burial, wet/chemical environments | High-occupancy buildings, fire safety zones |
Cable Construction
Copper Conductor
Class 2 stranded copper per EN 60228. Suitable for fixed installation in power distribution networks.
XLPE Insulation (2X)
Cross-linked polyethylene, 90°C continuous operating temperature. 250°C short-circuit rating (max 5s).
HFFR Filler
Halogen-free flame retardant filler material. Ensures circular cross-section. No toxic gas emission in fire.
Steel Tape Armor (B)
Double galvanized steel tape, helically applied. Provides crush and impact resistance for direct burial and concrete.
HFFR Outer Sheath (H)
Halogen-free flame retardant compound. Black or green. Meets IEC 60754 (no halogen), IEC 61034 (low smoke).
Fire Safety Certified
Flame retardant IEC 60332-3-24 Cat. C. Low smoke IEC 61034-1/2. No corrosive gas IEC 60754-1/2.
Core Identification
| Cores | Standard Colors |
|---|---|
| 2-core | Blue, Brown |
| 3-core | Brown, Black, Grey |
| 4-core | Blue, Brown, Black, Grey |
| 5-core | Blue, Brown, Black, Grey, Black |
Technical Characteristics
| Rated Voltage | 0.6/1kV (U₀/U) |
| Test Voltage | 3.5 kV AC |
| Max. Conductor Temperature | 90°C (continuous), 250°C (short-circuit, max 5s) |
| Min. Bending Radius | 15 × D (single-core), 12 × D (multi-core) |
| Armor Type | Double galvanized steel tape |
| Sheath Color | Black or Green |
Applicable Standards & Fire Safety Certifications
N2XBH is unique in carrying both structural (IEC 60502-1) and fire safety (IEC 60332, IEC 61034, IEC 60754) certifications as a single product type.
| Standard | Scope |
|---|---|
| DIN VDE 0276-604 | German national standard for halogen-free armored power cables 0.6/1kV. |
| TS HD 604 S1 | CENELEC Harmonization Document — halogen-free cables for fixed installations. |
| IEC 60502-1 | International standard for power cables 1kV-30kV. Structural requirements. |
| IEC 60332-3-24 Cat. C | Flame retardancy — bundled cable vertical flame propagation test. Passes Category C. |
| IEC 61034-1/2 | Smoke density measurement — certifies low smoke emission during combustion (light transmittance ≥ 60%). |
| IEC 60754-1 | Halogen acid gas content — certifies zero halogen content in all cable materials. |
| IEC 60754-2 | Corrosive gas measurement — certifies no corrosive gas emission, protecting electronics and infrastructure. |
| IS 1516.1 | Indian standard for XLPE insulated armored cables. N2XBH meets Indian fire safety requirements. |
Technical Specifications
All values per DIN VDE 0276-604 / HD 604 S1. Construction dimensions include the steel tape armor layer. Weight is total cable weight including armor.
2-Core N2XBH Cable
| Cross Section (mm²) | Conductor Dia. (mm) | Insulation (mm) | Sheath (mm) | Overall Dia. (mm) | Weight (kg/km) |
|---|---|---|---|---|---|
| 2 × 2.5 | 1.76 | 0.7 | 1.24 | 13 | 276 |
| 2 × 4 | 2.21 | 0.7 | 1.24 | 14 | 326 |
| 2 × 6 | 2.71 | 0.7 | 1.24 | 15 | 384 |
| 2 × 10 | 3.85 | 0.7 | 1.24 | 17 | 498 |
| 2 × 16 | 4.80 | 0.7 | 1.24 | 19 | 649 |
| 2 × 25 | 5.85 | 0.9 | 1.24 | 22 | 882 |
| 2 × 35 | 6.90 | 0.9 | 1.32 | 24 | 1,113 |
| 2 × 50 | 8.10 | 1.0 | 1.40 | 27 | 1,421 |
| 2 × 70 | 9.70 | 1.1 | 1.48 | 31 | 1,899 |
| 2 × 95 | 11.40 | 1.1 | 1.64 | 35 | 2,482 |
3-Core N2XBH Cable
| Cross Section (mm²) | Conductor Dia. (mm) | Insulation (mm) | Sheath (mm) | Overall Dia. (mm) | Weight (kg/km) |
|---|---|---|---|---|---|
| 3 × 1.5 | 1.36 | 0.7 | 1.24 | 12 | 265 |
| 3 × 2.5 | 1.76 | 0.7 | 1.24 | 14 | 342 |
| 3 × 4 | 2.21 | 0.7 | 1.24 | 15 | 417 |
| 3 × 6 | 2.71 | 0.7 | 1.24 | 16 | 501 |
| 3 × 10 | 3.85 | 0.7 | 1.24 | 19 | 704 |
| 3 × 16 | 4.80 | 0.7 | 1.24 | 21 | 938 |
| 3 × 25 | 5.85 | 0.9 | 1.24 | 24 | 1,315 |
| 3 × 35 | 6.90 | 0.9 | 1.32 | 26 | 1,682 |
| 3 × 50 | 8.10 | 1.0 | 1.40 | 29 | 2,176 |
| 3 × 70 | 9.70 | 1.1 | 1.48 | 34 | 2,949 |
| 3 × 95 | 11.40 | 1.1 | 1.64 | 38 | 4,004 |
| 3 × 120 | 12.65 | 1.2 | 1.72 | 42 | 5,215 |
| 3 × 150 | 14.40 | 1.4 | 1.88 | 47 | 6,413 |
| 3 × 185 | 15.75 | 1.6 | 2.04 | 51 | 7,719 |
| 3 × 240 | 18.20 | 1.7 | 2.20 | 58 | 9,961 |
3-Core + Reduced N2XBH Cable
| Cross Section (mm²) | Conductor Dia. Phase/Earth (mm) | Insulation (mm) | Sheath (mm) | Overall Dia. (mm) | Weight (kg/km) |
|---|---|---|---|---|---|
| 3 × 16 + 1 × 10 | 4.80 | 0.7 | 1.24 | 21 | 1,073 |
| 3 × 25 + 1 × 16 | 5.85 | 0.9 | 1.24 | 25 | 1,511 |
| 3 × 35 + 1 × 16 | 6.90 | 0.9 | 1.32 | 27 | 1,861 |
| 3 × 50 + 1 × 25 | 8.10 | 1.0 | 1.40 | 30 | 2,377 |
| 3 × 70 + 1 × 35 | 9.70 | 1.1 | 1.56 | 35 | 3,235 |
| 3 × 95 + 1 × 70 | 11.40 | 1.1 | 1.64 | 39 | 4,634 |
| 3 × 120 + 1 × 70 | 12.65 | 1.2 | 1.80 | 44 | 5,813 |
| 3 × 150 + 1 × 70 | 14.40 | 1.4 | 1.88 | 48 | 6,888 |
| 3 × 185 + 1 × 95 | 15.75 | 1.6 | 2.04 | 52 | 8,412 |
| 3 × 240 + 1 × 120 | 18.20 | 1.7 | 2.20 | 59 | 10,679 |
4-Core N2XBH Cable
| Cross Section (mm²) | Conductor Dia. (mm) | Insulation (mm) | Sheath (mm) | Overall Dia. (mm) | Weight (kg/km) |
|---|---|---|---|---|---|
| 4 × 1.5 | 1.36 | 0.7 | 1.24 | 13 | 309 |
| 4 × 2.5 | 1.76 | 0.7 | 1.24 | 14 | 369 |
| 4 × 4 | 2.21 | 0.7 | 1.24 | 16 | 469 |
| 4 × 6 | 2.71 | 0.7 | 1.24 | 17 | 577 |
| 4 × 10 | 3.85 | 0.7 | 1.24 | 20 | 821 |
| 4 × 16 | 4.80 | 0.7 | 1.24 | 22 | 1,113 |
| 4 × 25 | 5.85 | 0.9 | 1.32 | 25 | 1,593 |
| 4 × 35 | 6.90 | 0.9 | 1.40 | 28 | 2,060 |
| 4 × 50 | 8.10 | 1.0 | 1.48 | 32 | 2,637 |
| 4 × 70 | 9.70 | 1.1 | 1.56 | 36 | 3,611 |
| 4 × 95 | 11.40 | 1.1 | 1.72 | 41 | 5,355 |
| 4 × 120 | 12.65 | 1.2 | 1.88 | 46 | 6,590 |
| 4 × 150 | 14.40 | 1.4 | 1.96 | 51 | 8,096 |
| 4 × 185 | 15.75 | 1.6 | 2.12 | 56 | 9,795 |
| 4 × 240 | 18.20 | 1.7 | 2.36 | 63 | 12,585 |
5-Core N2XBH Cable
| Cross Section (mm²) | Conductor Dia. (mm) | Insulation (mm) | Sheath (mm) | Overall Dia. (mm) | Weight (kg/km) |
|---|---|---|---|---|---|
| 5 × 1.5 | 1.36 | 0.7 | 1.24 | 14 | 368 |
| 5 × 2.5 | 1.76 | 0.7 | 1.24 | 15 | 432 |
| 5 × 4 | 2.21 | 0.7 | 1.24 | 17 | 543 |
| 5 × 6 | 2.71 | 0.7 | 1.24 | 18 | 679 |
| 5 × 10 | 3.85 | 0.7 | 1.24 | 21 | 981 |
| 5 × 16 | 4.80 | 0.7 | 1.24 | 24 | 1,351 |
| 5 × 25 | 5.85 | 0.9 | 1.32 | 28 | 1,960 |
| 5 × 35 | 6.90 | 0.9 | 1.40 | 31 | 2,539 |
| 5 × 50 | 8.10 | 1.0 | 1.48 | 35 | 3,333 |
| 5 × 70 | 9.70 | 1.0 | 1.48 | 39 | 4,507 |
| 5 × 95 | 11.40 | 1.1 | 1.56 | 44 | 6,038 |
Packaging & Delivery
Iron-Wooden Drum
Standard for all armored cable shipments. Reinforced composite drums handle the extra weight of steel tape armor.
Heavy-Duty Wooden Drum
Fumigated hardwood drums. Steel-reinforced flanges for 120 mm² and above.
Custom Packaging
Customer-specified drums, cable end caps, desiccant bags, custom drum marking.
Customization Options
Full OEM/ODM: custom core colors, green or black sheath, custom cable printing, sequential meter marking. MOQ applies — contact sales.
Typical Applications
N2XBH is specified wherever fire safety regulations mandate LSZH cables — particularly in high-occupancy buildings and critical infrastructure:
Hospitals & Healthcare
Mandatory in operating theaters, ICUs, and patient wards. LSZH prevents toxic gas exposure to immobile patients during evacuation.
Schools & Universities
High-occupancy educational buildings. Building codes in EU increasingly mandate LSZH for all new school construction.
Cinemas & Theaters
Enclosed public assembly spaces with limited exits. Smoke from PVC cables is the leading cause of fire deaths in theaters.
Shopping Centers
Large undivided spaces where smoke spread is rapid. LSZH maintains visibility for evacuation routes.
Tunnels & Metro Stations
Underground spaces where smoke extraction is limited. LSZH is mandatory in EU tunnel safety directives.
Data Centers
Halogen gases corrode circuit boards and server contacts within minutes. LSZH protects millions in IT equipment during a fire event.
