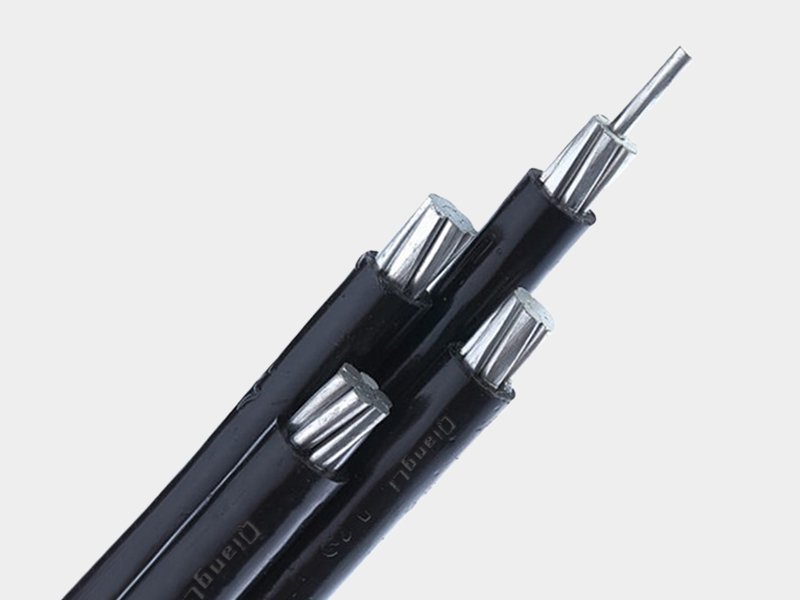

NFC 33-209 Aerial Bundle Conductor ABC Cable 4x16mm2
Conductor: Aluminium, Class 2 stranded compacted circular, 7 wires, Ø5.0mm
Insulation: Black HDPE (UV-resistant), 1.2mm thickness, Ø7.50mm insulated
Configuration: 4 identical 16mm² cores, right-hand helical twist, 2×2 layout
DC Resistance: 1.91 Ω/km at 20°C
Overall: 18.0mm bundle OD, 263 kg/km
Standard: NFC 33-209, -15°C to +75°C (HDPE), bending 15×D
Product Overview
NFC 33-209 Aerial Bundle Conductor ABC Cable 4×16mm² is a 0.6/1kV twisted overhead bundle cable manufactured to the French national standard NFC 33-209. Also known as Aluminum Insulated Twist Cable. It consists of four identical 16mm² aluminium phase conductors — Class 2 stranded compacted circular (7 wires, 5.0mm conductor diameter), each insulated with 1.2mm UV-resistant black HDPE (High-Density Polyethylene), laid up in a right-hand helical twist assembly. Unlike the 3×25+54.6 variants which use a dedicated aluminium alloy neutral messenger, the 4×16mm² configuration uses four identical conductors — the neutral is simply one of the four cores. HDPE insulation offers excellent UV resistance with slightly lower cost versus XLPE while maintaining 75°C continuous operating temperature. Designed for pole-mounted transformer to service head connections at ≤600V phase-to-phase, or ≤75°C conductor temperature when PE insulation is specified. The lightweight 4-core twist bundle (263 kg/km, 18mm OD) is ideal for short-span residential service drops and overhead distribution where all conductors are the same cross-section.
1. Phase Conductor — Stranded compacted circular aluminium (Class 2), 7 wires, 5.0mm diameter
2. Insulation — HDPE (UV-resistant), black, 1.2mm thickness
Assembly — 4 identical cores, right-hand helical twist, 2×2 layout
4 × Phase Conductor (16mm² Al)
Stranded compacted circular aluminium, Class 2, 7 wires, 5.0mm conductor diameter. All four cores identical — neutral is one of the four.
HDPE Insulation (UV-Resistant)
Black HDPE (High-Density Polyethylene), 1.2mm thickness, 7.50mm insulated diameter. UV-resistant for direct overhead exposure. 75°C continuous.
Right-Hand Helical Twist
Four identical cores laid up in right-hand lay. 2×2 grid arrangement. Overall bundle diameter: 18.0mm. Lightweight at 263 kg/km.
Same-Size 4-Core
Unlike 3×25+54.6 where neutral is larger, all four conductors are identical 16mm². Simplifies procurement, termination, and inventory.
NFC 33-209 Certified
French national standard. 0.6/1kV rated, ≤600V phase-to-phase for service drop. Max 75°C conductor (PE/HDPE) or 90°C (XLPE variants).
Service Drop ABC
Pole-mounted transformer to building service head. Lightweight twist bundle — single-drum pull, no separate catenary wire needed for short spans.
Technical Characteristics
| Rated Voltage | 600/1000V (0.6/1kV), ≤600V phase-to-phase for service |
| Test Voltage | 3.5 kV eff / 50 Hz |
| Laying Temperature | min. −5°C |
| Operating Temperature | −15°C to +75°C (PE/HDPE), +90°C for XLPE variants |
| Max. Conductor Temperature | +75°C (HDPE continuous), +90°C (XLPE continuous) |
| Short-Circuit Temperature | +250°C (XLPE) / +160°C (PE/HDPE), max 5 seconds |
| Min. Bending Radius | 15 × cable diameter (15 × 18 = 270 mm) |
Applicable Standards
| Standard | Scope |
|---|---|
| NFC 33-209 | French national standard for aerial bundled conductors with XLPE/PE insulation for LV overhead distribution networks. |
| IEC 60502-1 | International standard for extruded insulation power cables rated 1kV to 30kV. 4×16mm² ABC meets relevant structural requirements. |
NFC 33-209 Family Variants
| Configuration | Cores | Section (mm²) | Neutral | Weight (kg/km) |
|---|---|---|---|---|
| 4×16 | 4 identical | 4 × 16 | Same size (16mm²) | 263 |
| 3×25+54.6 | 3 phase + 1 neutral | 3 × 25 + 54.6 | Larger (54.6mm², self-supporting) | 509 |
| 3×25+54.6+2×16 | 3 phase + 1 neutral + 2 lighting | 3 × 25 + 54.6 + 2 × 16 | Larger (54.6mm², self-supporting) | 641 |
Technical Specifications
Single configuration: 4 identical 16mm² conductors, twisted preassembled bundle per NFC 33-209. Phase conductor: stranded compacted circular aluminium, Class 2. Insulation: black HDPE, UV-resistant. Right-hand lay assembly.
| Parameter | Unit | Value |
|---|---|---|
| Type | — | 4×16mm² ABC Overhead Line |
| Voltage | V | 600/1000 |
| Conductor Material | — | Aluminium, stranded, Class 2 compacted circular |
| Number of Wires per Conductor | — | 7 |
| Conductor Diameter | mm | 5.0 |
| Insulation Material | — | HDPE (UV-resistant), black |
| Insulation Thickness | mm | 1.2 |
| Insulated Conductor Diameter | mm | 7.50 |
| Cable Overall Diameter | mm | 18.0 |
| DC Resistance at 20°C | Ω/km | 1.91 |
| Cable Weight | kg/km | 263 |
Packaging & Delivery
| Parameter | Standard |
|---|---|
| Drum Type | Export wooden drum / iron-wooden drum / as per customer requirement |
| Drum Marking | Manufacturer, NFC 33-209, 4×16mm², voltage, weight, length, drum number |
| Cable End Sealing | Heat-shrink end caps to protect HDPE insulation from moisture ingress |
| Outer Protection | Weatherproof wrapping for sea freight |
| Delivery Condition | Factory-new, tested per NFC 33-209, test certificate on request |
Typical Applications
ABC Cable is designed for pole-mounted transformer to service head connections. The bundled insulated twist eliminates phase-to-phase faults and reduces bushfire hazard for overhead distribution in residential and rural areas:
Service Drop
Pole-mounted transformer to building service entrance head. Lightweight 263 kg/km — easy single-drum pull for short-span service drops.
Residential Distribution
Overhead distribution in residential subdivisions. 4 identical 16mm² cores — all conductors use the same termination hardware.
Bushfire Safe
Insulated HDPE bundle eliminates bare conductor arcing — the primary ignition source for overhead-line bushfires.
French Markets
NFC 33-209 certified for France and Francophone Africa. HDPE insulation meets French utility UV resistance requirements.
Same-Size Simplicity
All four conductors are identical 16mm². No special neutral hardware needed — one fitting size for all connections.
Short Span Overhead
Optimised for short spans. Compact 18mm OD — lighter and more flexible than 3×25+54.6 variants for residential service loops.
