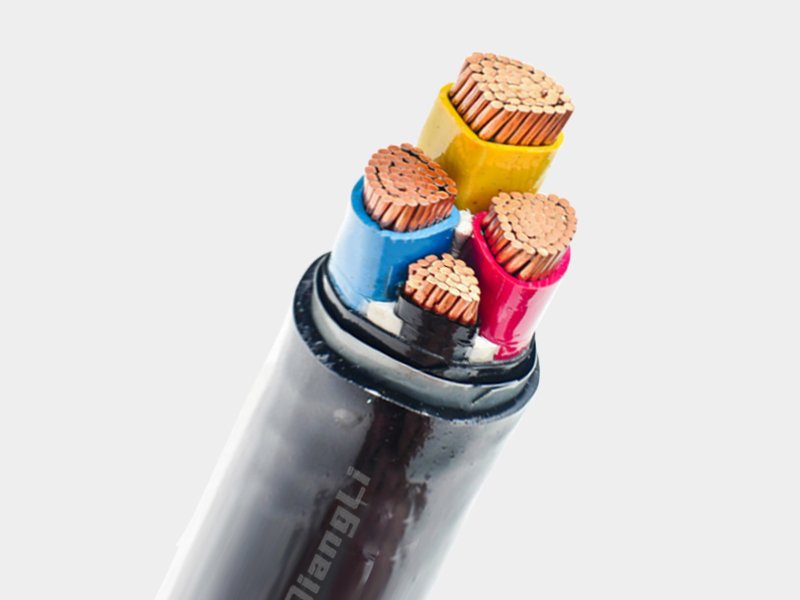

YJV22 Cable
Conductor: Copper, Class 1 or 2 to GB/T 3956
Insulation: XLPE (YJ), rated 90°C
Armour: Double galvanized steel tape (0.2/0.5mm)
Sheath: PVC compound (V), black
Voltage: 0.6/1kV
Number of cores: 1-5 cores, 3+1, 4+1, 3+2
Package: Export wooden drum & iron wooden drum
Product Overview
YJV22 Cable is a 0.6/1kV XLPE-insulated steel tape armored PVC-sheathed power cable manufactured to China's national standard GB/T 12706.1. Naming per Chinese convention: YJ = XLPE insulation, V = PVC sheath, 22 = double galvanized steel tape armor. YJV22 is the armored counterpart of YJV (unarmored) — both share the same XLPE/PVC construction, with the addition of a helical double steel tape for mechanical protection. It is the most widely specified armored cable in China's domestic construction and industrial markets, and the most commonly exported Chinese-standard armored cable for Belt & Road infrastructure projects.
YJV vs YJV22: Unarmored vs Armored in Chinese Standard
| Designation | Insulation | Armor | Sheath | Use |
|---|---|---|---|---|
| YJV | XLPE (YJ) | None | PVC (V) | Indoor, cable trays, protected routes |
| YJV22 | XLPE (YJ) | Steel tape (22) | PVC (V) | Direct burial, underground, mechanical protection required |
| YJV23 | XLPE (YJ) | Steel tape (22) | PE (3) | Direct burial, wet soil — PE sheath |
| ZR-YJV22 | XLPE (YJ) | Steel tape (22) | PVC (V) | As YJV22 + flame retardant (ZR/ZB/ZA) |

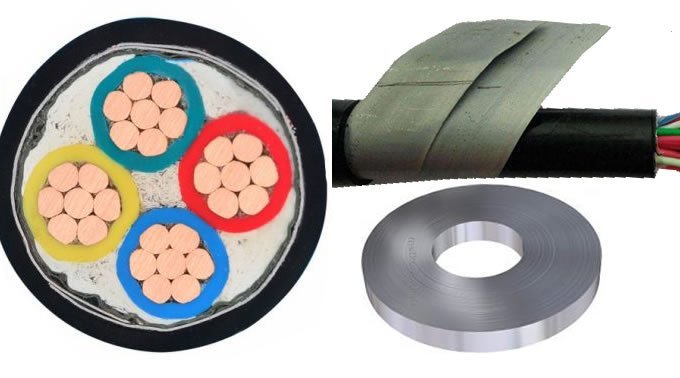

Cable Construction
1. Conductor — Copper, Class 1/2, GB/T 3956
2. XLPE Insulation — 90°C rated
3. Filler — Non-hygroscopic PP
4. Binder Tape — Core assembly
5. Inner Sheath — PVC bedding
6. Steel Tape Armour — Double galvanized
7. PVC Outer Sheath — Black, flame-retardant
Copper Conductor
Class 1 (solid) or Class 2 (stranded) copper per GB/T 3956. Equivalent to IEC 60228.
XLPE Insulation (YJ)
90°C continuous, 250°C short-circuit. Chinese XLPE produced to GB/T 12706.1 standards equivalent to IEC 60502-1.
Steel Tape Armour (22)
Double galvanized steel tape. 0.2mm (≤70mm²) / 0.5mm (≥95mm²). Helically applied with overlap.
PVC Sheath (V)
PVC compound, black. Flame-retardant per GB/T 18380. Other colors per GB/T 6995 on request.
Technical Characteristics
| Rated Voltage | 0.6/1kV (U₀/U), 1.2kV (Uₘ) |
| DC Test Voltage (core-earth/core-core) | 1.8/1.8kV |
| AC Test Voltage | 4 kV, 5 minutes |
| Max. Conductor Temperature | 90°C (continuous), 250°C (short-circuit, max 5s) |
| Temperature Range | -35°C to +90°C (fixed), +5°C min installation |
| Min. Bending Radius | 15 × D (single-core), 12 × D (multi-core) |
| Armor Type | Double galvanized steel tape (0.2/0.5mm) |
| Sheath Color | Black (standard); per GB/T 6995 on request |
Applicable Standards & Certifications
| Standard | Scope |
|---|---|
| GB/T 12706.1 | Chinese national standard for power cables 1kV-35kV. The primary standard governing YJV22 construction and testing. |
| GB/T 18380 / IEC 60332-3 | Flame retardant classification — bundle fire test Grades A, B, C. |
| GB/T 3956 / IEC 60228 | Conductor specification — Class 1 (solid) and Class 2 (stranded) copper and aluminum. |
| IEC 60502-1 | International standard — YJV22 meets all IEC 60502-1 requirements for XLPE/STA/PVC armored cables. |
| DIN VDE 0276-603 | German equivalent — N2XBY is the VDE counterpart of YJV22. |
| BS 5467 | British standard for XLPE armored cables. For UK and Commonwealth markets. |
| GB/T 6995 | Core and sheath identification colors for Chinese-standard cables. |
Technical Specifications
Armor: 0.2mm (≤70mm²), 0.5mm (≥95mm²). Current ratings: air 30°C, ground 20°C, 2.5 K·m/W, 0.7m. "-" = not specified.
1-Core through 5-Core, 3+1, 4+1, 3+2 Core
| Cross Section (mm²) | Insul. (mm) | Armour (mm) | Sheath (mm) | O.D. (mm) | Weight (kg/km) | 20°C Res. (Ω/km) | Air (A) | Ground (A) |
|---|---|---|---|---|---|---|---|---|
| 1-Core | ||||||||
| 1 × 10 | 0.7 | 0.2 | 1.8 | 11.8 | 244 | 1.83 | 75 | 47 |
| 1 × 16 | 0.7 | 0.2 | 1.8 | 12.9 | 318 | 1.15 | 97 | 62 |
| 1 × 25 | 0.9 | 0.2 | 1.8 | 14.6 | 430 | 0.727 | 125 | 78 |
| 1 × 35 | 0.9 | 0.2 | 1.8 | 15.2 | 533 | 0.524 | 155 | 94 |
| 1 × 50 | 1.0 | 0.2 | 1.8 | 16.7 | 668 | 0.387 | 190 | 110 |
| 1 × 70 | 1.1 | 0.2 | 1.8 | 18.5 | 893 | 0.268 | 245 | 135 |
| 1 × 95 | 1.1 | 0.2 | 1.8 | 20.1 | 1,157 | 0.193 | 300 | 160 |
| 1 × 120 | 1.2 | 0.2 | 1.8 | 21.7 | 1,410 | 0.153 | 350 | 185 |
| 1 × 150 | 1.4 | 0.2 | 1.8 | 23.7 | 1,705 | 0.124 | 400 | 205 |
| 1 × 185 | 1.6 | 0.2 | 1.8 | 25.7 | 2,082 | 0.0991 | 460 | 235 |
| 1 × 240 | 1.7 | 0.2 | 1.8 | 28.0 | 2,652 | 0.0754 | — | — |
| 1 × 300 | 1.8 | 0.2 | 1.9 | 31.0 | 3,259 | 0.0601 | — | — |
| 1 × 400 | 2.0 | 0.2 | 2.0 | 35.0 | 4,135 | 0.047 | — | — |
| 2-Core | ||||||||
| 2 × 2.5 | 0.7 | 0.2 | 1.8 | 13.4 | 230 | 7.41 | — | 45 |
| 2 × 4 | 0.7 | 0.2 | 1.8 | 14.3 | 277 | 4.61 | — | 59 |
| 2 × 6 | 0.7 | 0.2 | 1.8 | 15.3 | 336 | 3.08 | — | 74 |
| 2 × 10 | 0.7 | 0.2 | 1.8 | 17.8 | 452 | 1.83 | 64 | 100 |
| 2 × 16 | 0.7 | 0.2 | 1.8 | 20.0 | 609 | 1.15 | 83 | 135 |
| 2 × 25 | 0.9 | 0.2 | 1.8 | 23.3 | 845 | 0.727 | 110 | 165 |
| 2 × 35 | 0.9 | 0.2 | 1.8 | 24.6 | 1,065 | 0.524 | 135 | 200 |
| 2 × 50 | 1.0 | 0.2 | 1.8 | 27.2 | 1,297 | 0.387 | 165 | 240 |
| 2 × 70 | 1.1 | 0.2 | 1.9 | 31.4 | 1,775 | 0.268 | 210 | 295 |
| 2 × 95 | 1.1 | 0.2 | 2.0 | 35.5 | 2,340 | 0.193 | 260 | 355 |
| 2 × 120 | 1.2 | 0.5 | 2.2 | 40.2 | 3,238 | 0.153 | 305 | 405 |
| 2 × 150 | 1.4 | 0.5 | 2.3 | 44.2 | 3,971 | 0.124 | 345 | 455 |
| 2 × 185 | 1.6 | 0.5 | 2.5 | 48.9 | 4,845 | 0.0991 | 396 | 515 |
| 3-Core | ||||||||
| 3 × 2.5 | 0.7 | 0.2 | 1.8 | 13.9 | 265 | 7.41 | — | 35 |
| 3 × 4 | 0.7 | 0.2 | 1.8 | 14.8 | 328 | 4.61 | — | 50 |
| 3 × 6 | 0.7 | 0.2 | 1.8 | 16.0 | 410 | 3.08 | — | 60 |
| 3 × 10 | 0.7 | 0.2 | 1.8 | 18.6 | 560 | 1.83 | 64 | 85 |
| 3 × 16 | 0.7 | 0.2 | 1.8 | 21.0 | 775 | 1.15 | 83 | 110 |
| 3 × 25 | 0.9 | 0.2 | 1.8 | 24.6 | 1,098 | 0.727 | 110 | 140 |
| 3 × 35 | 0.9 | 0.2 | 1.8 | 26.0 | 1,410 | 0.524 | 135 | 170 |
| 3 × 50 | 1.0 | 0.2 | 1.9 | 28.9 | 1,780 | 0.387 | 165 | 200 |
| 3 × 70 | 1.1 | 0.2 | 2.0 | 33.9 | 2,475 | 0.268 | 210 | 245 |
| 3 × 95 | 1.1 | 0.5 | 2.2 | 39.0 | 3,260 | 0.193 | 260 | 300 |
| 3 × 120 | 1.2 | 0.5 | 2.3 | 42.7 | 4,477 | 0.153 | 305 | 335 |
| 3 × 150 | 1.4 | 0.5 | 2.4 | 47.5 | 5,440 | 0.124 | 345 | 380 |
| 3 × 185 | 1.6 | 0.5 | 2.6 | 52.1 | 6,707 | 0.0991 | 395 | 430 |
| 3 × 240 | 1.7 | 0.5 | 2.8 | 58.3 | 8,533 | 0.0754 | 465 | 500 |
| 3 × 300 | 1.8 | 0.5 | 2.9 | 63.6 | 10,455 | 0.0601 | 535 | 565 |
| 4-Core | ||||||||
| 4 × 2.5 | 0.7 | 0.2 | 1.8 | 14.7 | 308 | 7.41 | — | 35 |
| 4 × 4 | 0.7 | 0.2 | 1.8 | 15.8 | 388 | 4.61 | — | 50 |
| 4 × 6 | 0.7 | 0.2 | 1.8 | 17.0 | 488 | 3.08 | — | 60 |
| 4 × 10 | 0.7 | 0.2 | 1.8 | 20.0 | 681 | 1.83 | 64 | 85 |
| 4 × 16 | 0.7 | 0.2 | 1.8 | 22.7 | 960 | 1.15 | 83 | 110 |
| 4 × 25 | 0.9 | 0.2 | 1.8 | 26.7 | 1,375 | 0.727 | 110 | 140 |
| 4 × 35 | 0.9 | 0.2 | 1.8 | 28.3 | 1,779 | 0.524 | 135 | 170 |
| 4 × 50 | 1.0 | 0.2 | 2.1 | 32.0 | 2,296 | 0.387 | 165 | 200 |
| 4 × 70 | 1.1 | 0.5 | 2.1 | 38.5 | 3,175 | 0.268 | 210 | 245 |
| 4 × 95 | 1.1 | 0.5 | 2.3 | 42.9 | 4,665 | 0.193 | 260 | 300 |
| 4 × 120 | 1.2 | 0.5 | 2.4 | 47.4 | 5,728 | 0.153 | 305 | 335 |
| 4 × 150 | 1.4 | 0.5 | 2.6 | 52.3 | 6,999 | 0.124 | 345 | 380 |
| 4 × 185 | 1.6 | 0.5 | 2.7 | 57.5 | 8,657 | 0.0991 | 395 | 430 |
| 4 × 240 | 1.7 | 0.5 | 3.0 | 64.3 | 11,000 | 0.0754 | 465 | 500 |
| 4 × 300 | 1.8 | 0.5 | 3.1 | 70.3 | 13,587 | 0.0601 | 535 | 565 |
| 5-Core | ||||||||
| 5 × 2.5 | 0.7 | 0.2 | 1.8 | 15.6 | 350 | 7.41 | — | 35 |
| 5 × 4 | 0.7 | 0.2 | 1.8 | 16.8 | 447 | 4.61 | — | 50 |
| 5 × 6 | 0.7 | 0.2 | 1.8 | 18.2 | 569 | 3.08 | — | 60 |
| 5 × 10 | 0.7 | 0.2 | 1.8 | 21.6 | 805 | 1.83 | 64 | 85 |
| 5 × 16 | 0.7 | 0.2 | 1.8 | 24.6 | 1,150 | 1.15 | 83 | 110 |
| 5 × 25 | 0.9 | 0.2 | 1.8 | 29.0 | 1,655 | 0.727 | 110 | 140 |
| 5 × 35 | 0.9 | 0.2 | 1.9 | 31.0 | 2,166 | 0.524 | 135 | 170 |
| 5 × 50 | 1.0 | 0.2 | 2.1 | 35.7 | 2,945 | 0.387 | 165 | 200 |
| 5 × 70 | 1.1 | 0.5 | 2.3 | 42.4 | 4,453 | 0.268 | 210 | 245 |
| 5 × 95 | 1.1 | 0.5 | 2.4 | 47.2 | 5,862 | 0.193 | 260 | 300 |
| 5 × 120 | 1.2 | 0.5 | 2.6 | 51.8 | 7,176 | 0.153 | 305 | 335 |
| 5 × 150 | 1.4 | 0.5 | 2.7 | 57.6 | 8,770 | 0.124 | 345 | 380 |
| 5 × 185 | 1.6 | 0.5 | 2.9 | 63.8 | 10,827 | 0.0991 | 395 | 430 |
| 5 × 240 | 1.7 | 0.5 | 3.2 | 70.7 | 13,770 | 0.0754 | 465 | 500 |
| 5 × 300 | 1.8 | 0.5 | 3.4 | 78.0 | 16,960 | 0.0601 | 535 | 565 |
| 3+1 Core, 4+1 Core, 3+2 Core | ||||||||
| 3 × 4 + 1 × 2.5 | 0.7/0.7 | 0.2 | 1.8 | 15.5 | 368 | 4.61/7.41 | — | 50 |
| 3 × 10 + 1 × 6 | 0.7/0.7 | 0.2 | 1.8 | 19.3 | 633 | 1.83/3.08 | 64 | 85 |
| 3 × 16 + 1 × 10 | 0.7/0.7 | 0.2 | 1.8 | 22.1 | 890 | 1.15/1.83 | 83 | 110 |
| 3 × 25 + 1 × 16 | 0.9/0.7 | 0.2 | 1.8 | 25.1 | 1,272 | 0.727/1.15 | 110 | 140 |
| 3 × 50 + 1 × 25 | 1.0/0.9 | 0.2 | 1.9 | 30.2 | 2,030 | 0.387/0.727 | 165 | 200 |
| 3 × 70 + 1 × 35 | 1.1/0.9 | 0.2 | 2.0 | 35.1 | 2,810 | 0.268/0.524 | 210 | 245 |
| 3 × 95 + 1 × 50 | 1.1/1.0 | 0.5 | 2.2 | 40.4 | 4,135 | 0.193/0.387 | 260 | 300 |
| 3 × 120 + 1 × 70 | 1.2/1.1 | 0.5 | 2.3 | 45.0 | 5,135 | 0.153/0.268 | 305 | 335 |
| 3 × 150 + 1 × 70 | 1.4/1.1 | 0.5 | 2.5 | 49.1 | 6,120 | 0.124/0.268 | 345 | 380 |
| 3 × 185 + 1 × 95 | 1.6/1.1 | 0.5 | 2.8 | 54.3 | 7,616 | 0.0991/0.193 | 395 | 430 |
| 3 × 240 + 1 × 120 | 1.7/1.2 | 0.5 | 2.8 | 59.1 | 9,679 | 0.0754/0.153 | 465 | 500 |
| 3 × 300 + 1 × 150 | 1.8/1.4 | 0.5 | 3.0 | 66.0 | 11,889 | 0.0601/0.124 | 535 | 565 |
| 4 × 4 + 1 × 2.5 | 0.7/0.7 | 0.2 | 1.8 | 16.3 | 434 | 4.61/7.41 | — | 50 |
| 4 × 10 + 1 × 6 | 0.7/0.7 | 0.2 | 1.8 | 20.3 | 759 | 1.83/3.08 | 64 | 85 |
| 4 × 25 + 1 × 16 | 0.9/0.7 | 0.2 | 1.8 | 28.1 | 1,557 | 0.727/1.15 | 110 | 140 |
| 4 × 50 + 1 × 25 | 1.0/0.9 | 0.2 | 2.0 | 34.0 | 2,601 | 0.387/0.727 | 165 | 200 |
| 4 × 95 + 1 × 50 | 1.1/1.0 | 0.5 | 2.3 | 44.8 | 5,260 | 0.193/0.387 | 260 | 300 |
| 4 × 150 + 1 × 70 | 1.4/1.1 | 0.5 | 2.8 | 54.6 | 7,780 | 0.124/0.268 | 345 | 380 |
| 4 × 240 + 1 × 120 | 1.7/1.2 | 0.5 | 3.0 | 67.1 | 12,253 | 0.0754/0.153 | 465 | 500 |
| 4 × 300 + 1 × 150 | 1.8/1.4 | 0.5 | 3.2 | 73.7 | 15,078 | 0.0601/0.124 | 535 | 565 |
| 3 × 4 + 2 × 2.5 | 0.7/0.7 | 0.2 | 1.8 | 16.6 | 412 | 4.61/7.41 | — | 50 |
| 3 × 10 + 2 × 6 | 0.7/0.7 | 0.2 | 1.8 | 20.9 | 714 | 1.83/3.08 | 64 | 85 |
| 3 × 25 + 2 × 16 | 0.9/0.7 | 0.2 | 1.9 | 28.9 | 1,718 | 0.727/1.15 | 110 | 140 |
| 3 × 50 + 2 × 25 | 1.0/0.9 | 0.2 | 2.1 | 35.6 | 2,774 | 0.387/0.727 | 165 | 200 |
| 3 × 95 + 2 × 50 | 1.1/1.0 | 0.5 | 2.4 | 45.8 | 5,329 | 0.193/0.387 | 260 | 300 |
| 3 × 150 + 2 × 70 | 1.4/1.1 | 0.5 | 2.7 | 53.8 | 7,629 | 0.124/0.268 | 345 | 380 |
| 3 × 240 + 2 × 120 | 1.7/1.2 | 0.5 | 3.1 | 66.4 | 11,105 | 0.0754/0.153 | 465 | 500 |
| 3 × 300 + 2 × 150 | 1.8/1.4 | 0.5 | 3.3 | 73.0 | 13,645 | 0.0601/0.124 | 535 | 565 |
Packaging & Delivery
Export Wooden Drum
Fumigated wooden drums. Standard for all armored export shipments. Steel-reinforced flanges for 95mm²+.
Iron-Wooden Drum
Reinforced composite drums for heavy cross-sections. Prevents deformation during long-distance transport.
Custom Packaging
GB/T-compliant marking, custom drum labeling, sequential meter marking. MOQ applies.
Typical Applications
Direct Burial & Underground
Primary application. Steel tape armor protects against soil pressure, sharp stones, and construction activity.
Industrial Plants
Heavy industrial environments. GB/T 12706.1 is the default Chinese standard for factory power distribution.
Commercial & Residential
Main feeders in Chinese-standard building projects. YJV22 is the default armored cable in Chinese construction codes.
Substations
Inter-station and inter-bay connections. XLPE insulation handles elevated ambient temperatures.
Belt & Road Infrastructure
China-funded road, rail, and port projects worldwide. GB/T certification accepted in 50+ partner countries.
Transportation
Railway, metro, and airport electrical systems. Steel tape provides rodent and vibration protection.
