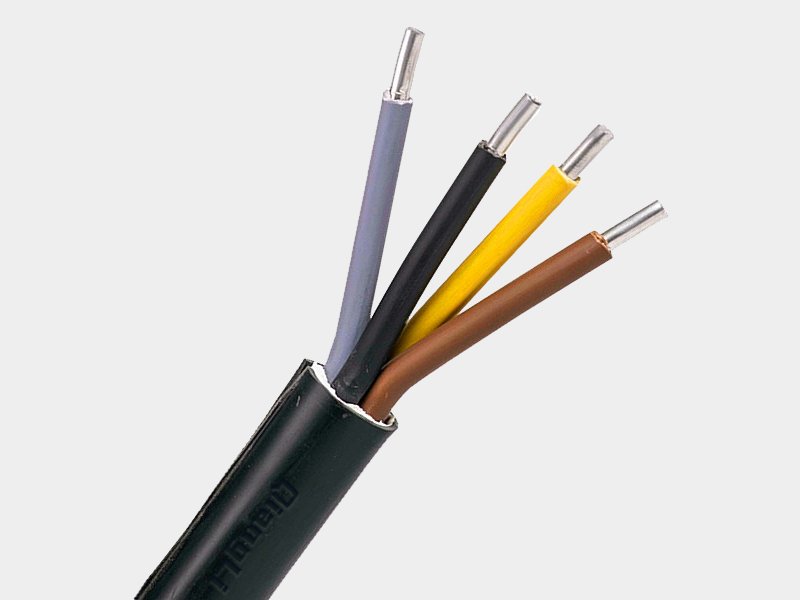

1-Ayky Cable

Power cable 0,6/1 kV with Al conductors, PVC insulated and sheathed

Conductor: Aluminum, Class 1 (RE) or Class 2 (RM/SM)
Insulation: PVC compound DIV 1, rated 70°C
Sheath: PVC compound DMV 1, black, flame-retardant
Voltage: 0.6/1 kV
Number of cores: 3-5 cores, 3+reduced per HD 603 S1
Package: Export wooden drum

Product Overview

1-AYKY Cable is a 0.6/1kV unarmored power cable with aluminum conductor, PVC insulation, and PVC sheath, manufactured to the Polish national standard PNE 34 7659-3 and the CENELEC harmonization document HD 603 S1. Naming: A = aluminium, Y = PVC insulation, K = cable, Y = PVC sheath; the "1-" prefix designates the standard grade according to Polish designation rules. AYKY is the aluminum-conductor variant of the widely used YKY (copper) cable family, and the Polish counterpart to Russia's AVVG and Germany's NAYY — all share the same Al/PVC/PVC construction under different national standards.

Aluminum vs Copper in Polish Standard Unarmored Cables

Property	1-AYKY (Aluminum)	YKY (Copper)
Conductor Material	Aluminum (class 1/2)	Copper (class 1/2)
Weight (same cross-section)	~50% lighter	Reference
Cost	~40-60% lower material cost	Higher
Conductivity (IACS)	~61%	100%
Termination	Requires Al-Cu bi-metallic lugs	Standard copper lugs
Primary Markets	Poland, Central/Eastern Europe (cost-driven)	Western Europe, global

Regional Aluminium Cable Equivalents

Region	Designation	Key Standard
Poland / Central Europe	1-AYKY	PNE 34 7659-3, HD 603 S1
Germany / VDE	NAYY	DIN VDE 0276-603
Russia / CIS	AVVG	GOST 16442-80

Aluminum Conductor

Solid (RE) or stranded (RM/SM). 61% of Cu conductivity at ~50% weight. EN 60228 Class 1 or 2.

PVC Insulation

Compound DIV 1 per HD 603 S1. 70°C continuous, 160°C short-circuit (max 5s).

PVC Bedding

Extruded elastomeric or plastomeric compound, or plastic tape. Applied over laid-up cores.

PVC Sheath

Compound DMV 1, black. Flame-retardant (EN 50265-2-1, IEC 60332-1).

Technical Characteristics

Rated Voltage	0.6/1 kV
Test Voltage	4 kV AC
Max. Conductor Temperature	70°C (continuous), 160°C (short-circuit, max 5s)
Operating Temperature	-50°C to +70°C
Min. Installation Temperature	+5°C (without pre-heating)
Min. Bending Radius	15 × cable diameter
Flame Retardant	EN 50265-2-1, IEC 60332-1
Core Identification	Coloured per HD 308 S2

Applicable Standards

Standard	Scope
PNE 34 7659-3	Polish national standard for PVC insulated and sheathed power cables 0.6/1kV. Primary standard for AYKY designation.
HD 603 S1	CENELEC Harmonization Document — base document for national standards across EU/EEA.
EN 60228 / IEC 60228	Conductor specification — Class 1 (RE, solid) and Class 2 (RM/SM, stranded) for both aluminum and copper.
HD 308 S2	Core identification color coding for CENELEC countries.
EN 50265-2-1 / IEC 60332-1	Flame retardant test — single cable vertical flame propagation.

AYKY vs YAKY: Both denote the same aluminum/PVC/PVC cable. The designation "1-AYKY" follows the PNE standard prefix convention; some older specifications use "YAKY" without the prefix. When quoting, confirm the exact designation in the customer's project specification — both refer to the same cable per PNE 34 7659-3.

Core Identification (HD 308 S2)

Cores	Standard Colors
3-core	Green/yellow — Brown — Blue
4-core	Green/yellow — Brown — Black — Grey
5-core	Green/yellow — Blue — Brown — Black — Grey

Technical Specifications

RE = round solid conductor (Class 1). RM = round stranded (Class 2). SM = sector-shaped compacted stranded (Class 2). Metal weight = aluminum conductor weight only (excludes insulation, bedding, and sheath).

Cross Section (mm²)	Max. Conductor Resistance (Ω/km)	Current Ground (A)	Current Air (A)	Outer Dia. (mm)	Al Weight (kg/km)	Total Weight (kg/km)
4 × 25 RE	1.238	103	78	22.4	300	750
5 × 25 RE	1.238	103	78	24.4	375	880
3 × 35 + 25 RE/RE	0.885/1.238	125	96	24.7	390	909
4 × 35 RE	0.885	125	96	24.7	420	939
5 × 35 RE	0.885	125	96	27.1	525	1,108
3 × 50 + 35 RE/RE	0.641/0.885	147	117	28.9	505	1,219
4 × 50 RE	0.641	147	117	28.9	600	1,275
4 × 50 SM	0.641	147	117	30.4	600	1,089
3 × 70 + 50 RE/RE	0.443/0.641	183	150	32.2	780	1,559
3 × 70 + 50 SM/RM	0.443/0.641	183	150	33.6	780	1,314
4 × 70 RE	0.443	183	150	32.2	840	1,618
4 × 70 RM	0.443	183	150	35.4	840	1,814
4 × 70 SM	0.443	183	150	33.6	840	1,345
3 × 95 + 70 SM/RM	0.326/0.443	216	182	39.3	1,065	1,743
4 × 95 SM	0.326	216	182	39.3	1,140	1,836
3 × 120 + 70 SM/RE	0.258/0.443	245	212	40.6	1,290	2,000
3 × 120 + 70 SM/RM	0.258/0.443	245	212	43.0	1,290	2,057
4 × 120 SM	0.258	245	212	43.0	1,440	2,225
3 × 150 + 70 SM/RE	0.206/0.443	278	245	45.6	1,560	2,415
3 × 150 + 70 SM/RM	0.206/0.443	278	245	46.8	1,560	2,457
4 × 150 SM	0.206	278	245	46.8	1,800	2,734
3 × 185 + 95 SM/RE	0.167/0.326	313	280	48.4	1,950	2,950
3 × 185 + 95 SM/RM	0.167/0.326	313	280	49.8	1,950	3,009
3 × 185 + 95 SM/SM	0.167/0.326	313	280	48.4	1,950	2,993
4 × 185 SM	0.167	313	280	49.8	2,220	3,364
3 × 240 + 120 SM/RE	0.129/0.258	359	330	54.8	2,520	3,728
3 × 240 + 120 SM/RM	0.129/0.258	359	330	56.4	2,520	3,804
4 × 240 SM	0.129	359	330	56.4	2,880	4,217

Conductor type note: RE = solid aluminum (round). SM = sector-shaped compacted stranded — provides the most compact outer diameter for a given cross-section, reducing cable weight and sheathing material. For multi-core cables ≥50mm², SM conductor is recommended for ease of installation and reduced cable diameter.

Packaging & Delivery

🪵

Export Wooden Drum

Fumigated wooden drums. Aluminum cables are significantly lighter than copper — compact drums for cost-efficient shipping.

📦

Coil Packaging

Smaller cross-sections (≤50mm²) available in coils for short-haul transport and on-site handling.

📋

Custom Packaging

PNE-compliant drum labeling, sequential meter marking, customer-specified drum types. MOQ applies.

Typical Applications

🏭

Industrial Power Distribution

Fixed installation in power stations, industrial facilities, and switchgear for LV power distribution.

🏗️

Cable Ducts & Indoor

Interior premises and cable ducts where no mechanical damage is expected. Not for direct burial without conduit.

🌊

Outdoor & Wet Locations

Open air and water installations permitted by local building regulations where mechanical protection is not required.

🇵🇱

Polish & Central European Markets

PNE 34 7659-3 certified. Standard aluminum power cable for cost-driven projects in Poland and CEE.

⚡

Local Mains Distribution

Secondary distribution networks in residential and commercial zones. Aluminum's lower cost reduces project capex.

❄️

Cold Climate

-50°C minimum operating temperature. Suitable for outdoor installations in Eastern European winter conditions.
