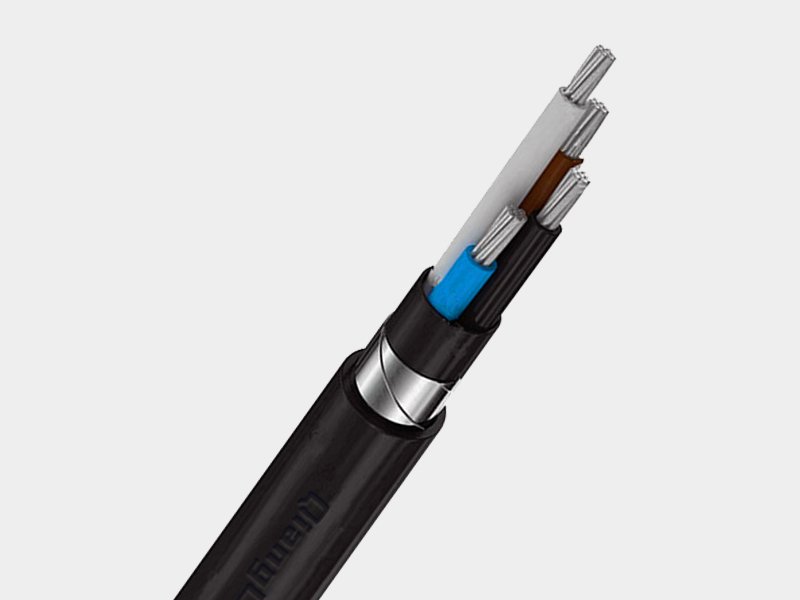

ACYAbY ACYAbY-F Cable
Conductor: Aluminum, Class 1 (RE) or Class 2 (RM/SM)
Insulation: PVC Type A, rated 70°C
Armour: Steel tape (Ab), 0.2-0.5mm
Sheath: PVC Type ST 1, black or grey
Voltage: 0.6/1 kV
Number of cores: 2-4 cores, 3+reduced
Package: Export wooden drum
Product Overview
ACYAbY / ACYAbY-F Cable is a 0.6/1kV aluminum-conductor PVC-insulated steel tape armoured PVC-sheathed power cable. Designated per Romanian standard SR HD 603 S1/4C. Naming: A = aluminium, C = ?, Y = PVC insulation, Ab = steel tape armour (aluminium band in notation despite steel material), Y = PVC sheath. ACYAbY is the aluminum-conductor variant of the copper CYAbY and functionally equivalent to AYKYbY — all share Al/PVC/STA/PVC construction. The "F" variant (ACYAbY-F) designates the flat cable configuration.
Copper vs Aluminum STA Armoured Comparison
| Designation | Conductor | Insulation | Armour | Sheath |
|---|---|---|---|---|
| ACYAbY | Aluminum (RE/RM/SM) | PVC, 70°C | Steel Tape | PVC |
| NYBY | Copper (RE/RM) | PVC, 70°C | Steel Tape | PVC |
| YJV22 | Copper (RE/RM) | XLPE, 90°C | Steel Tape | PVC |
Aluminum Conductor
Solid (RE) or stranded (RM/SM). Class 1 or 2 per EN 60228. Aluminum weight given separately for cost calculation.
PVC Insulation
Compound Type A per HD 603. 70°C continuous, 160°C short-circuit (max 5s).
PVC Bedding
Extruded PVC inner sheath, black or grey. Separates cores from steel tape armour.
Steel Tape Armour (Ab)
Blank or zinc-plated cold-rolled steel tape, 0.2-0.5mm thickness. Provides crush and impact protection.
PVC Outer Sheath
Compound Type ST 1, black or grey. Max tensile strain during installation: 50 N/mm².
Flame Retardant
Self-extinguishing per flame retardant standards. Suitable for indoor and outdoor installations.
Technical Characteristics
| Rated Voltage | 0.6/1 kV |
| Test Voltage | 3.5 kV AC or 8.4 kV DC, 5 minutes |
| Max. Conductor Temperature | 70°C (operating), 160°C (short-circuit) |
| Operating Temperature | -30°C to +70°C |
| Min. Installation Temperature | -5°C (without pre-heating) |
| Min. Bending Radius | 12 × D (multi-core), 15 × D (single-core) |
| Max. Tensile Strain During Installation | 50 N/mm² |
Applicable Standards
| Standard | Scope |
|---|---|
| SR HD 603 S1/4C | Romanian adoption of CENELEC HD 603 — distribution cables 0.6/1kV. Section 4C covers PVC insulated, armoured cables. |
| ST 104: Rev 2:2016 | Romanian national supplementary standard for power cable testing and performance requirements. |
| IEC 60502-1 | International standard for power cables 1kV-30kV. ACYAbY meets all IEC 60502-1 structural requirements. |
| EN 60228 | Conductor specifications — Class 1 and Class 2 aluminum conductors. |
| SR HD 308 S2 | Romanian adoption of HD 308 S2 core identification standard for CENELEC countries. |
Technical Specifications
RE = round solid (Class 1). SM = sector-shaped compacted stranded (Class 2). Al Weight = aluminum conductor weight only. Total Weight = complete cable weight including armour.
| Cross Section (mm²) | Outer Dia. (mm) | Sheath (mm) | Al Weight (kg/km) | Total Weight (kg/km) |
|---|---|---|---|---|
| 2-Core | ||||
| 2 × 4 RE | 15.8 | 1.8 | 23 | 370 |
| 2 × 6 RE | 16.8 | 1.8 | 34 | 417 |
| 2 × 10 RE | 18.5 | 1.8 | 55 | 510 |
| 2 × 16 RE | 20.5 | 1.8 | 90 | 629 |
| 3-Core | ||||
| 3 × 4 RE | 16.5 | 1.8 | 34 | 402 |
| 3 × 6 RE | 17.4 | 1.8 | 51 | 451 |
| 3 × 10 RE | 19.4 | 1.8 | 83 | 562 |
| 3 × 16 RE | 21.5 | 1.8 | 135 | 700 |
| 3 × 25 RE | 24.5 | 1.8 | 199 | 907 |
| 3 × 35 SM | 24.9 | 1.8 | 273 | 913 |
| 3 × 50 SM | 28.7 | 1.9 | 372 | 1181 |
| 3 × 70 SM | 32.2 | 2.0 | 540 | 1494 |
| 3 × 95 SM | 37.6 | 2.2 | 750 | 2263 |
| 3 × 120 SM | 41.3 | 2.3 | 942 | 2687 |
| 3 × 150 SM | 43.6 | 2.4 | 1155 | 3075 |
| 3 × 185 SM | 49.2 | 2.6 | 1455 | 3774 |
| 3 × 240 SM | 56.0 | 2.8 | 1914 | 4778 |
| 3-Core + Reduced Neutral | ||||
| 3 × 25 + 16 RE+RE | 26.2 | 1.8 | 244 | 1001 |
| 3 × 35 + 16 SM+RE | 27.1 | 1.8 | 318 | 1078 |
| 3 × 50 + 25 SM+RE | 31.5 | 2.0 | 438 | 1425 |
| 3 × 70 + 35 SM+SM | 37.1 | 2.2 | 631 | 2074 |
| 3 × 95 + 50 SM+SM | 42.4 | 2.3 | 874 | 2644 |
| 3 × 120 + 70 SM+SM | 46.7 | 2.5 | 1122 | 3150 |
| 3 × 150 + 70 SM+SM | 48.5 | 2.5 | 1335 | 3506 |
| 3 × 185 + 95 SM+SM | 55.4 | 2.8 | 1705 | 4406 |
| 3 × 240 + 120 SM+SM | 62.3 | 3.0 | 2228 | 5453 |
| 4-Core | ||||
| 4 × 4 RE | 17.9 | 1.8 | 45 | 458 |
| 4 × 6 RE | 19.0 | 1.8 | 68 | 523 |
| 4 × 10 RE | 21.2 | 1.8 | 110 | 650 |
| 4 × 16 RE | 23.7 | 1.8 | 180 | 816 |
| 4 × 25 RE | 27.0 | 1.8 | 265 | 1064 |
| 4 × 35 SM | 27.1 | 1.8 | 364 | 1100 |
Packaging & Delivery
Export Wooden Drum
Standard for all armored cable shipments. Aluminum conductor reduces overall weight vs copper.
Coil Packaging
Smaller cross-sections (≤35mm²) available in coils for short-haul transport and on-site handling.
SR HD 603 Compliant Marking
Romanian-standard drum labeling, sequential meter marking, ST 104 testing documentation.
Typical Applications
Power Station Supply
Primary application — power supply circuits to generating stations. Aluminum offers 50% weight saving.
Underground & Direct Burial
Steel tape armour provides mechanical protection. Can be installed in air, underground, inside or outside.
Building Infrastructure
Main feeders in residential and commercial buildings. Cost-effective aluminum alternative to copper armoured cables.
Romanian & Balkan Markets
SR HD 603 S1/4C + ST 104:2016 compliant. Standard aluminum armoured cable for Romanian tender specifications.
Narrow Ducts (ACYAbY-F)
Flat variant for under-floor channels, narrow trays, and confined routing in renovation projects.
Mechanical Protection Zones
High resistance to mechanical shocks. Protects against impact, compression, and construction activity.
