Power Cable

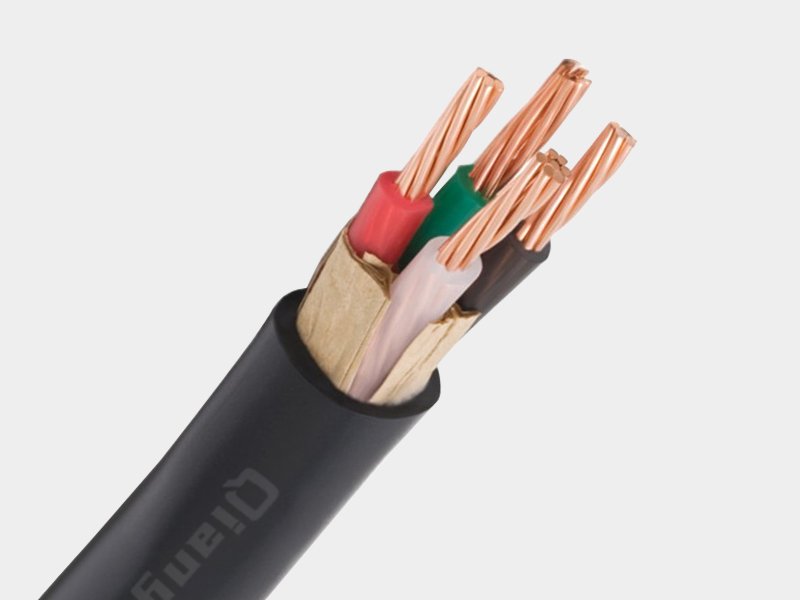

CV TFR-CV Cable

0.6 / 1kV XLPE Insulated PVC Sheathed Power Cable

Conductor: Plain annealed copper

Insulation: XLPE

Sheath: Polyvinylchloride compound PVC 5V-90

Voltage: 0.6/1kV

Number of cores: Multi Core

Package: Export wooden drum & iron wooden drum or as customer require

Email: inquiry@qiangligroup.com

Product Description

CV TFR-CV cable is a 0.6/1kV XLPE insulated, PVC sheathed power cable engineered for fixed installation in power distribution networks, industrial plants, and commercial buildings. The cross-linked polyethylene (XLPE) insulation delivers superior thermal stability (continuous operating temperature up to 90°C) and excellent dielectric strength compared to traditional PVC insulation, making it the preferred choice for modern low-voltage power transmission.

Cable Construction

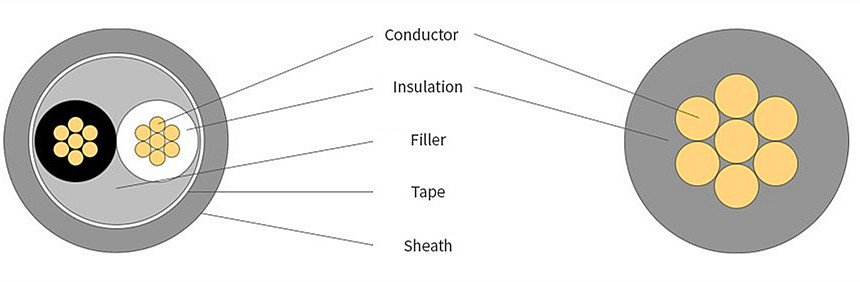

CV TFR-CV Cable Cross Section — Conductor, XLPE Insulation, Filler, Tape, PVC Sheath

1. Conductor — Plain annealed copper, Class 1/2 stranded to IEC 60228
2. XLPE Insulation — Cross-linked polyethylene, 90°C continuous operating temperature
3. Filler — Non-hygroscopic PP filling for roundness and mechanical stability
4. Tape — Binding tape for core assembly integrity
5. PVC Sheath — Compound 5V-90, flame-retardant, oil and UV resistant

Key Features

XLPE Insulation

Higher current-carrying capacity, superior short-circuit rating, and longer service life compared to PVC-insulated cables of equivalent cross-section.

PVC Sheath 5V-90

Flame-retardant outer sheath with excellent resistance to oils, acids, alkalis, and moisture — ideal for harsh industrial environments.

Annealed Copper Conductor

Class 1 or Class 2 plain annealed copper to IEC 60228, ensuring optimal conductivity, flexibility, and long-term reliability.

0.6/1kV Rated

Suitable for all standard low-voltage power distribution applications — indoor, outdoor, underground, and in cable trays.

Standards Compliance

IEC 60502-1 BS 5467 GB/T 12706.1 VDE 0276-603 SS 299

Technical Specifications

2-Core CV TFR-CV Cable

Nominal Sectional Area	No. & Dia. of Wire	Outer Dia.	Insulation Thickness	Sheath Thickness	Overall Diameter	Max. Conductor Resistance at 20℃	Test Voltage	Approx. Weight	Standard Length
1.5 mm²	7/0.53	1.59	0.7	1.4	6.3	12.1	3500	60	300
2.5 mm²	7/0.67	2.01	0.7	1.4	6.7	7.41	3500	75	300
4 mm²	7/0.85	2.55	0.7	1.4	7.2	4.61	3500	95	300
6 mm²	7/1.04	3.12	0.7	1.4	7.8	3.08	3500	115	300
10 mm²	7/1.35	4.05	0.7	1.4	9.4	1.83	3500	160	300
16 mm²	C.C	4.7	0.7	1.4	10.0	1.15	3500	220	300
25 mm²	C.C	5.9	0.9	1.4	12.0	0.727	3500	320	300
35 mm²	C.C	6.9	0.9	1.4	13.0	0.524	3500	420	300
50 mm²	C.C	8.1	1.0	1.4	14.5	0.387	3500	565	300
70 mm²	C.C	9.8	1.1	1.4	16.0	0.268	3500	750	300
95 mm²	C.C	11.4	1.1	1.5	18.5	0.193	3500	1,005	300
120 mm²	C.C	12.9	1.2	1.5	20.0	0.153	3500	1,260	300
150 mm²	C.C	14.4	1.4	1.6	22.0	0.124	3500	1,560	300
185 mm²	C.C	15.9	1.6	1.6	24.0	0.0991	3500	1,935	200
240 mm²	C.C	18.3	1.7	1.7	27.0	0.0754	3500	2,455	200
300 mm²	C.C	20.5	1.8	1.8	30.0	0.0601	3500	3,065	200
400 mm²	C.C	23.2	2.0	1.9	34.0	0.0470	3500	3,995	150
500 mm²	C.C	26.4	2.2	2.0	37.0	0.0366	3500	4,840	150
630 mm²	C.C	30.2	2.4	2.2	42.0	0.0283	3500	6,540	150

3-Core CV TFR-CV Cable

Nominal Sectional Area	No. & Dia. of Wire	Outer Dia.	Insulation Thickness	Sheath Thickness	Overall Diameter	Max. Conductor Resistance at 20℃	Test Voltage	Approx. Weight	Standard Length
1.5 mm²	7/0.53	1.59	0.7	1.8	11.0	12.1	3500	130	300
2.5 mm²	7/0.67	2.01	0.7	1.8	12.0	7.41	3500	160	300
4 mm²	7/0.85	2.55	0.7	1.8	13.0	4.61	3500	210	300
6 mm²	7/1.04	3.12	0.7	1.8	14.0	3.08	3500	260	300
10 mm²	7/1.35	4.05	0.7	1.8	17.0	1.83	3500	365	300
16 mm²	C.C	4.7	0.7	1.8	18.5	1.15	3500	490	300
25 mm²	C.C	5.9	0.9	1.8	22.0	0.727	3500	720	300
35 mm²	C.C	6.9	0.9	1.8	24.0	0.524	3500	940	300
50 mm²	C.C	8.1	1.0	1.8	27.0	0.387	3500	1,255	300
70 mm²	C.C	9.8	1.1	1.8	31.0	0.268	3500	1,665	300
95 mm²	C.C	11.4	1.1	1.9	35.0	0.193	3500	2,220	300
120 mm²	C.C	12.9	1.2	2.0	38.0	0.153	3500	2,770	300
150 mm²	C.C	14.4	1.4	2.2	43.0	0.124	3500	3,440	300
185 mm²	C.C	15.9	1.6	2.3	47.0	0.0991	3500	4,275	200
240 mm²	C.C	18.3	1.7	2.5	53.0	0.0754	3500	5,540	200
300 mm²	C.C	20.5	1.8	2.6	58.0	0.0601	3500	6,800	200

4-Core CV TFR-CV Cable

Nominal Sectional Area	No. & Dia. of Wire	Outer Dia.	Insulation Thickness	Sheath Thickness	Overall Diameter	Max. Conductor Resistance at 20℃	Test Voltage	Approx. Weight	Standard Length
1.5 mm²	7/0.53	1.59	0.7	1.8	11.5	12.1	3500	155	300
2.5 mm²	7/0.67	2.01	0.7	1.8	12.5	7.41	3500	190	300
4 mm²	7/0.85	2.55	0.7	1.8	13.5	4.61	3500	255	300
6 mm²	7/1.04	3.12	0.7	1.8	14.5	3.08	3500	330	300
10 mm²	7/1.35	4.05	0.7	1.8	18.0	1.83	3500	470	300
16 mm²	C.C	4.7	0.7	1.8	19.5	1.15	3500	650	300
25 mm²	C.C	5.9	0.9	1.8	23.0	0.727	3500	970	300
35 mm²	C.C	6.9	0.9	1.8	25.0	0.524	3500	1,280	300
50 mm²	C.C	8.1	1.0	1.8	29.0	0.387	3500	1,725	300
70 mm²	C.C	9.8	1.1	1.9	33.0	0.268	3500	2,320	300
95 mm²	C.C	11.4	1.1	2.0	37.0	0.193	3500	3,105	300
120 mm²	C.C	12.9	1.2	2.1	41.0	0.153	3500	3,890	300
150 mm²	C.C	14.4	1.4	2.3	46.0	0.124	3500	4,835	300
185 mm²	C.C	15.9	1.6	2.4	50.0	0.0991	3500	6,030	200
240 mm²	C.C	18.3	1.7	2.6	57.0	0.0754	3500	7,670	200
300 mm²	C.C	20.5	1.8	2.7	62.0	0.0601	3500	9,575	200

5-Core CV TFR-CV Cable

Nominal Sectional Area	No. & Dia. of Wire	Outer Dia.	Insulation Thickness	Sheath Thickness	Overall Diameter	Max. Conductor Resistance at 20℃	Test Voltage	Approx. Weight	Standard Length
1.5 mm²	7/0.53	1.59	0.7	1.8	12.5	12.1	3500	180	300
2.5 mm²	7/0.67	2.01	0.7	1.8	13.5	7.41	3500	235	300
4 mm²	7/0.85	2.55	0.7	1.8	14.5	4.61	3500	305	300
6 mm²	7/1.04	3.12	0.7	1.8	16.0	3.08	3500	405	300
10 mm²	7/1.35	4.05	0.7	1.8	20.0	1.83	3500	590	300
16 mm²	C.C	4.7	0.7	1.8	22.0	1.15	3500	820	300
25 mm²	C.C	5.9	0.9	1.8	26.0	0.727	3500	1,245	300
35 mm²	C.C	6.9	0.9	1.8	28.0	0.524	3500	1,645	300
50 mm²	C.C	8.1	1.0	1.9	32.0	0.387	3500	2,240	300
70 mm²	C.C	9.8	1.1	2.0	36.0	0.268	3500	3,020	300
95 mm²	C.C	11.4	1.1	2.1	42.0	0.193	3500	4,060	300
120 mm²	C.C	12.9	1.2	2.3	46.0	0.153	3500	5,105	300
150 mm²	C.C	14.4	1.4	2.4	51.0	0.124	3500	6,345	300
185 mm²	C.C	15.9	1.6	2.6	56.0	0.0991	3500	7,930	200
240 mm²	C.C	18.3	1.7	2.8	63.0	0.0754	3500	10,060	200
300 mm²	C.C	20.5	1.8	3.0	70.0	0.0601	3500	12,600	200

Core Color Coding

Number of Cores	Core Identification Colors
2 Cores	Black, White
3 Cores	Black, White, Red
4 Cores	Black, White, Red, Green
5 Cores	Black, White, Red, Green, Yellow/Green

Custom color coding and core configurations are available upon request. Yellow/Green earth core is included as standard in 5-core configurations.

Packaging & Delivery

🪵

Export Wooden Drum

Standard for international shipping. Fumigated solid wood or plywood, suitable for container loading.

🔩

Iron-Wooden Drum

Heavy-duty reinforced drums for large cross-section cables (240 mm² and above).

📦

Custom Packaging

Plywood reels, corrugated drums, or coiling — as per customer specifications.

Drum Reference

Cable Size Range	Drum Type	Approx. Length per Drum
1.5 mm² – 35 mm²	Small Wooden Drum	300 m
50 mm² – 150 mm²	Medium Wooden Drum	300 m
185 mm² – 300 mm²	Large Wooden Drum	200 m
400 mm² – 630 mm²	Extra-Large Iron-Wooden Drum	150 m

Customization Options

We offer OEM branding with custom cable marking, sheath colors, and private-label packaging. Minimum order quantities apply — please contact us for details.

Applications

🏭

Industrial Plants

Power distribution within factories, processing facilities, and manufacturing plants.

🏢

Commercial Buildings

Main feeders and sub-main distribution in office towers, shopping malls, and hotels.

🏗️

Construction Sites

Temporary and permanent power supply for construction projects and infrastructure.

⚡

Power Stations

Auxiliary power cabling in thermal, hydro, and renewable energy generation facilities.

🔌

Distribution Networks

Underground residential distribution, street lighting, and utility networks.
