THHN THWN Wire 8.0mm² 14mm² 22mm² 30mm² 38mm² 50mm² 60mm² 80mm² 100mm² Philippines
Voltage: 600V, UL-83 Listed, NEC conduit & raceway rated
Conductor: Soft annealed copper, ASTM B-3 solid & ASTM B-8 Class B stranded
Insulation: PVC inner + Nylon (polyamide) outer — THHN dual-layer technology
Temperature: THHN 90°C dry / THWN 75°C wet (same wire, dual rating by environment)
Range: 29 sizes — 4 solid + 25 stranded, 2.0-500mm², AWG/MCM cross-reference
Ampacity: 75°C & 90°C per ≤3 conductors + single conductor free-air
Standard: UL-83, NEMA WC-5, ASTM B-3, ASTM B-8
Product Overview
THHN THWN Wire — Philippine Market is a single-core copper building wire with PVC insulation and Nylon (polyamide) jacket manufactured to ASTM B-3 (soft annealed copper), ASTM B-8 (concentric-lay stranded copper), UL-83 (thermoplastic insulated wire), and NEMA WC-5. The dual designation encodes the application temperature: THHN (Thermoplastic High Heat-resistant Nylon-coated) rated 90°C in dry locations, and THWN (Thermoplastic Heat and Water-resistant Nylon-coated) rated 75°C in wet locations — the same wire, with the rating determined by the installation environment per NEC Table 310.104(A). The Philippine market specification uses metric conductor sizes (mm²) alongside AWG/MCM equivalents with Philippine-specific intermediate sizes (8.0, 14, 22, 30, 38, 50, 60, 80, 100mm²) that bridge the gaps between standard AWG sizes. Rated 600V per UL-83, THHN/THWN is the most widely installed single-core building wire in North America and the Philippines — the default specification for conduit pulls, cable tray runs, and equipment connections in commercial and industrial electrical installations.
The three-layer construction defines THHN technology: (1) a soft annealed bare copper conductor — solid for sizes up to 3.2mm diameter (≈8mm²) and Class B concentric-lay stranded for sizes from 2.0mm² to 500mm², (2) a colour-coded PVC insulation layer providing the primary dielectric strength, and (3) an extruded Nylon (polyamide) outer jacket providing the mechanical toughness — abrasion resistance, chemical resistance to oils and gasoline, and a 105°C melting point that protects the PVC layer from damage during installation pulling. The Nylon jacket is the defining characteristic of THHN/THWN wire versus ordinary PVC building wire — it enables the wire to survive being pulled through conduit with other conductors without insulation damage, a fundamental requirement for UL listing under the NEC's conduit fill regulations. The Philippine market specification includes both solid (diameter-based: 1.6, 2.0, 2.6, 3.2mm) and stranded conductor sizes (mm² from 2.0 to 500mm², with AWG/MCM equivalents for cross-reference to North American electrical codes). Ampacity data is provided for both 75°C (THWN wet-location rating) and 90°C (THHN dry-location rating) per conductor at up to 3 conductors in a raceway and single conductor free-air.

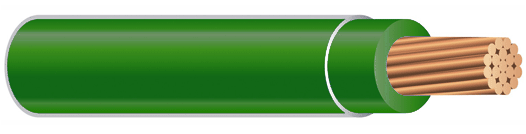

Outer Jacket — Dark green PVC+Nylon, smooth glossy surface with 3D gradient shading, grey border ring at stripped section
Copper Conductor — 19-strand copper bundle in 1-6-12 concentric lay, reddish-brown/orange-tan, exposed at right end where insulation is stripped
Cross-Section — Rightmost tip shows 19-strand circular arrangement confirming Class B concentric stranding
Solid & Stranded Copper (ASTM B-3/B-8)
Solid: 1.6-3.2mm diameter. Stranded: 2.0-500mm², Class B concentric lay. Soft annealed copper — maximum conductivity for conduit and raceway installations per NEC.
PVC Insulation + Nylon Jacket
THHN technology: inner PVC for dielectric + outer Nylon for mechanical. 90°C dry (THHN), 75°C wet (THWN). 600V per UL-83. Gasoline, oil, and abrasion resistant.
Philippine Metric Sizes
Philippine-specific intermediate mm² sizes (8, 14, 22, 30, 38, 50, 60, 80, 100mm²) bridge AWG gaps. AWG/MCM cross-reference for North American engineers.
Dual Ampacity (Wet & Dry)
75°C THWN wet rating + 90°C THHN dry rating. Up to 3 conductors + single conductor free-air. Full 29 rows with insulation resistance data.
29 Sizes to 500mm²
4 solid (1.6-3.2mm) + 25 stranded (2.0mm²-500mm²). 100m-1000m rolls. Export wooden case & pallet.
UL-83 + NEMA WC-5
UL Listed for NEC conduit installations. NEMA standard ensures interchangeability across all North American THHN manufacturers. ASTM B-3/B-8 copper certified.
Technical Characteristics
| Rated Voltage | 600V (UL-83) |
| THHN Rating | 90°C — dry locations only |
| THWN Rating | 75°C — wet locations |
| THWN-2 Rating | 90°C — wet and dry locations (superseding variant) |
| Conductor Material | Soft annealed bare copper — ASTM B-3 (solid), ASTM B-8 (Class B concentric strand) |
| Insulation | PVC inner + Nylon (polyamide) outer — two-layer extrusion |
| Flame Resistance | UL-83 VW-1 vertical flame test |
| Standard | UL-83, NEMA WC-5, ASTM B-3, ASTM B-8 |
Applicable Standards
| Standard | Scope |
|---|---|
| UL-83 | UL standard for thermoplastic insulated wires and cables — the defining North American standard for THHN/THWN construction, testing, and listing. Required for NEC compliance. |
| NEMA WC-5 | National Electrical Manufacturers Association standard for thermoplastic insulated wire — ensures dimensional and performance interchangeability across all manufacturers. |
| ASTM B-3 | ASTM specification for soft or annealed copper wire — the material standard for solid THHN copper conductors up to 3.2mm diameter. |
| ASTM B-8 | ASTM specification for concentric-lay stranded copper conductors — the material standard for Class B stranded THHN conductors from 2.0mm² to 500mm². |
Technical Specifications
Soft annealed copper per ASTM B-3 (solid) and ASTM B-8 Class B concentric strand. PVC+Nylon insulation per UL-83. Ampacity: THWN = 75°C wet rating, THHN = 90°C dry rating. Up to 3 conductors in raceway (standard NEC derating) and single conductor free-air. Philippine market mm² sizes with AWG/MCM equivalents.
| Conductor Size | Stranding (No./mm) | Insul. PVC (mm) | Jacket (mm) | O.D. (mm) | Ampacity 75°C ≤3 / 1 (A) | Ampacity 90°C ≤3 / 1 (A) | Insul. Res. (MΩ/km) | Weight (kg/km) |
|---|---|---|---|---|---|---|---|---|
| Solid Conductor (mm diameter) | ||||||||
| 1.6 | 1/1.6 | 0.51 | 0.10 | 2.9 | — / — | — / — | 0.112 | 20 |
| 2.0 | 1/2.0 | 0.51 | 0.10 | 3.3 | 25 / 30 | 30 / 35 | 0.112 | 30 |
| 2.6 | 1/2.6 | 0.51 | 0.10 | 3.7 | 35 / 40 | 40 / 50 | 0.112 | 50 |
| 3.2 | 1/3.2 | 0.76 | 0.10 | 5.0 | 50 / 60 | 55 / 70 | 0.112 | 75 |
| Stranded Conductor (mm²) — Philippine Market Sizes | ||||||||
| 2.0 (14 AWG) | 7/0.60 | 0.76 | 0.10 | 3.6 | 20 / 20 | 25 / 25 | 0.102 | 25 |
| 3.5 (12 AWG) | 7/0.80 | 0.76 | 0.10 | 4.0 | 25 / 30 | 30 / 35 | 0.092 | 37 |
| 5.5 (10 AWG) | 7/1.00 | 0.76 | 0.10 | 4.7 | 35 / 40 | 40 / 50 | 0.082 | 55 |
| 8.0 (8 AWG) | 7/1.20 | 1.14 | 0.10 | 5.8 | 50 / 60 | 55 / 70 | 0.082 | 79 |
| 14 (6 AWG) | 7/1.60 | 1.14 | 0.10 | 6.8 | 65 / 80 | 75 / 95 | 0.082 | 140 |
| 22 (4 AWG) | 7/2.00 | 1.14 | 0.10 | 8.3 | 85 / 105 | 95 / 125 | 0.082 | 213 |
| 30 (3 AWG) | 7/2.30 | 1.14 | 0.13 | 9.3 | 100 / 120 | 110 / 140 | 0.082 | 288 |
| 38 (2 AWG) | 7/2.60 | 1.14 | 0.13 | 10.2 | 115 / 140 | 130 / 165 | 0.082 | 363 |
| 50 (1 AWG) | 19/1.80 | 1.52 | 0.15 | 12.1 | 130 / 160 | 150 / 190 | 0.082 | 475 |
| 60 (1/0 AWG) | 19/2.00 | 1.52 | 0.15 | 13.3 | 150 / 185 | 170 / 215 | 0.082 | 570 |
| 80 (2/0 AWG) | 19/2.30 | 1.52 | 0.15 | 14.9 | 175 / 215 | 195 / 250 | 0.082 | 760 |
| 100 (3/0 AWG) | 19/2.60 | 1.52 | 0.18 | 16.8 | 200 / 245 | 225 / 285 | 0.082 | 950 |
| 125 (4/0 AWG) | 19/2.90 | 1.52 | 0.18 | 18.5 | 230 / 285 | 260 / 330 | 0.082 | 1,190 |
| 150 (250 MCM) | 37/2.30 | 1.90 | 0.20 | 20.4 | 255 / 315 | 290 / 365 | 0.082 | 1,445 |
| 175 (300 MCM) | 37/2.60 | 1.90 | 0.20 | 22.5 | 285 / 350 | 320 / 405 | 0.082 | 1,680 |
| 200 (350 MCM) | 37/2.60 | 1.90 | 0.22 | 24.2 | 310 / 385 | 350 / 445 | 0.082 | 1,920 |
| 250 (500 MCM) | 37/2.90 | 2.03 | 0.24 | 28.4 | 380 / 470 | 430 / 545 | 0.082 | 2,390 |
| 325 (600 MCM) | 61/2.60 | 2.41 | 0.28 | 31.6 | 420 / 520 | 475 / 600 | 0.082 | 3,100 |
| 375 (700 MCM) | 61/2.80 | 2.41 | 0.28 | 34.1 | 460 / 570 | 520 / 660 | 0.082 | 3,600 |
| 400 (750 MCM) | 61/2.90 | 2.79 | 0.31 | 35.2 | 475 / 585 | 535 / 680 | 0.082 | 3,850 |
| 500 (1000 MCM) | 61/3.20 | 2.79 | 0.34 | 39.5 | 545 / 675 | 615 / 785 | 0.082 | 4,800 |
Packaging & Delivery
| Parameter | Standard |
|---|---|
| Package | 100m/500m/1000m per spool per mm² size; export wooden case & pallet |
| Spool Marking | Manufacturer, THHN/THWN, 600V, UL-83, AWG/mm², length, weight, batch, UL/NEMA marks |
| Colour Options | Standard THHN colours per NEC: black, white, red, blue, green, yellow, brown, orange, grey, purple, pink |
| Outer Protection | Wooden case; Nylon jacket provides transport abrasion protection — the wire's own durable construction minimises packaging requirements |
| Delivery Condition | Factory-new, tested per UL-83, NEMA WC-5, ASTM B-3/B-8, UL Listed, test certificate on request |
Typical Applications
THHN/THWN is the most widely installed single-core building wire in North America and the Philippines — the default specification for conduit, raceway, and cable tray installations:
Commercial Building Wiring
Standard single-core THHN for office, retail, and commercial building conduit installations — the most common building wire type by installed length in North America.
Industrial Conduit & Cable Tray
Nylon jacket enables pulling through long conduit runs with multiple conductors without insulation damage — the key advantage over ordinary PVC wire per NEC fill regulations.
Machine Tool Wiring
Per NFPA 79 for industrial machinery. Gasoline and oil-resistant Nylon jacket survives the harsh chemical environment of machine tool interiors.
Philippine Market
Philippine-specific metric sizes (8-100mm²) — standard THHN wire specified by Philippine electrical engineers and contractors per Philippine Electrical Code.
Service Entrance Cable (THWN)
THWN 75°C wet rating qualifies for outdoor service entrance conduit — the transition from utility service to building distribution board.
Dual Ampacity Circuit Design
75°C + 90°C ampacity columns for up to 3 conductors + single conductor — complete NEC circuit design data on a single specification page.
