Factory-Direct Supply of Certified Wires and Conductors for Diverse Industrial Applications
Copper Core PVC Insulation House Wiring Electrical Wire 450/750V
Conductor: Bare copper, solid Class 1 (1.5-10mm²) & stranded Class 2 (1.5-630mm²)
Insulation: PVC Type PVC/C, 0.6-2.6mm wall, 70°C continuous, 160°C/5s short-circuit
Colours: Red, blue, green, yellow, black, white, green/yellow, brown, grey, orange, purple, pink
Temperature: 0°C to +70°C operating, 0°C min installation
Bending Radius: 15 × D, flame retardant per GB/T 18380.12 / IEC 60332-1
Standard: GB/T 5023 (IEC 60227), BS 6004
Product Overview
Copper Core PVC Insulation House Wiring Electrical Wire 450/750V is a single-core copper conductor building wire with PVC insulation, manufactured to the Chinese national standard GB/T 5023 (equivalent to IEC 60227) and British Standard BS 6004. It is the most fundamental electrical wire in building construction — the standard single-core conductor used for fixed installation in conduits, trunking, and protected raceways for lighting, socket, and appliance circuits in residential, commercial, and light industrial buildings. Available with solid (Class 1) copper conductors from 1.5mm² to 10mm², and stranded (Class 2) conductors from 1.5mm² to 630mm², with PVC Type PVC/C insulation in thicknesses ranging from 0.6mm to 2.6mm depending on conductor size. Insulator colours are available across the full standard range — red, blue, green, yellow, black, white, green/yellow, brown, grey, orange, purple, yellow/green, and pink — enabling full compliance with IEC 60446 colour identification for phase, neutral, and earth conductors.
The PVC insulation compound (Type PVC/C per GB/T 5023) is formulated for 70°C continuous operation in dry conditions with a maximum short-circuit temperature of 160°C for 5 seconds. With an operating temperature range of 0°C to +70°C and a minimum installation temperature of 0°C, this wire is designed for protected indoor environments — it must not be exposed to direct sunlight, water, or mechanical stress outside of a conduit or raceway. The bending radius is 15× the overall diameter (as low as 36mm for 1.5mm² stranded) making it easy to pull through even the tightest domestic conduit runs. As a single-core wire, each conductor is purchased and installed separately — the electrician creates their own cable assemblies on-site by pulling individual phase, neutral, and earth conductors through the same conduit, giving complete flexibility in circuit design and spare capacity provisioning.
This wire bridges the gap between ultra-thin fixture wires (TF, AWG 18-16) and heavy power distribution cables (N2XY, 0.6/1kV). With a 450/750V rating, it is qualified for both single-phase and three-phase building distribution up to the main consumer unit — making it suitable for all internal building circuits from the distribution board downstream. The BS 6004 certification ensures acceptance in UK, Commonwealth, and Middle Eastern markets where British Standards are referenced in local building codes.

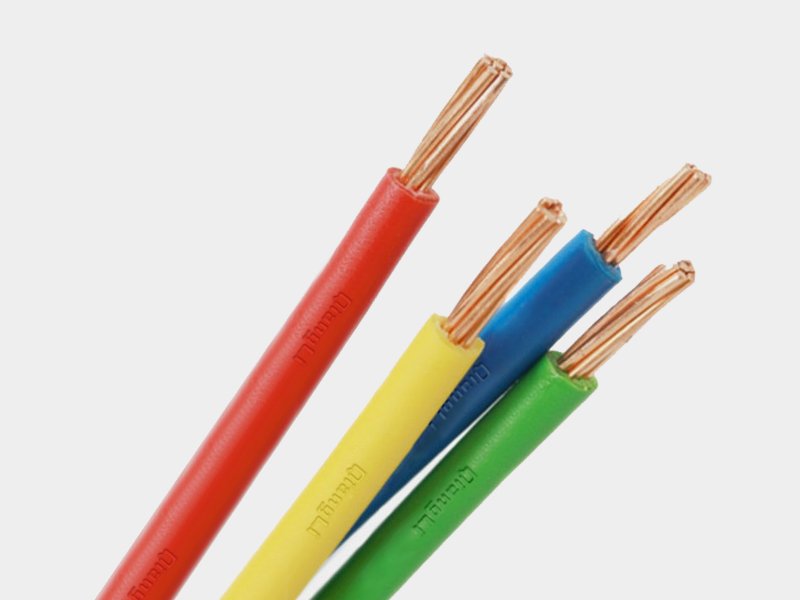

Copper Conductor — 7-strand circular copper (Class 2), bare annealed
PVC Insulation — Type PVC/C, colour coded to IEC 60446, 70°C rated
Stripped-End View — Right side shows exposed copper strands stripped of insulation for termination
Solid (Class 1) Copper
1.5-10mm² solid annealed copper. For screw-terminal connections in fixed domestic wiring — simpler termination, no strand separation.
Stranded (Class 2) Copper
1.5-630mm² stranded circular copper. Flexible routing in conduits and trunking without kinking. Standard for commercial and industrial pull-through.
PVC Type PVC/C Insulation
0.6-2.6mm wall thickness per size. 70°C continuous dry, 160°C/5s short-circuit. Flame retardant per GB/T 18380.12 / IEC 60332-1.
Full Colour Range
Red, blue, green, yellow, black, white, green/yellow, brown, grey, orange, purple, yellow/green, pink. IEC 60446 compliant for phase/neutral/earth.
450/750V Building Wire
Rated 450/750V — qualified for single-phase and three-phase circuits up to the consumer unit. 0-70°C operating, 0°C min installation.
GB/T 5023 + BS 6004
Chinese national standard GB/T 5023 (=IEC 60227) + British BS 6004. Dual certification for Asia-Pacific and Commonwealth markets.
Technical Characteristics
| Rated Voltage U₀/U | 450/750V |
| Max. Conductor Temperature | +70°C (continuous) |
| Max. Short-Circuit Temperature | +160°C (max 5 seconds) |
| Operating Temperature Range | 0°C to +70°C |
| Minimum Laying Temperature | 0°C |
| Min. Bending Radius | 15 × overall diameter |
| Insulation Material | PVC Type PVC/C per GB/T 5023 / IEC 60227 |
| Conductor Types | Class 1 solid (1.5-10mm²) & Class 2 stranded (1.5-630mm²) |
Applicable Standards
| Standard | Scope |
|---|---|
| GB/T 5023 (IEC 60227) | Chinese national standard for PVC insulated cables of rated voltages up to and including 450/750V. Equivalent to IEC 60227. |
| BS 6004 | British Standard for PVC insulated cables (non-armoured) for electric power and lighting. BS 6004 Table 1 covers single-core non-sheathed cables. |
| IEC 60332-1 / GB/T 18380.12 | Single cable vertical flame test. Mandatory for building installation wires in all markets. |
| IEC 60446 | Basic and safety principles for man-machine interface — colour identification of conductors. Governs the phase/neutral/earth colour scheme. |
Global Single-Core Building Wire Equivalents
| Designation | Standard | Voltage | Insulation | Region |
|---|---|---|---|---|
| GB/T 5023 (BV/BVR) | GB/T 5023 | 450/750V | PVC | China |
| H07V-U / H07V-R / H07V-K | EN 50525-2-31 | 450/750V | PVC | EU (harmonised) |
| BS 6004 6491X | BS 6004 | 450/750V | PVC | UK / Commonwealth |
| THHN / THWN-2 | UL 83 | 600V | PVC + Nylon | USA / Canada |
Technical Specifications
Copper conductors per IEC 60228 / GB/T 3956: solid Class 1 (1.5-10mm²) and stranded Class 2 (1.5-630mm²). PVC Type PVC/C insulation per GB/T 5023. Conductor DC resistance at 20°C per IEC 60228 copper maximum values. All dimensions in mm, weight in kg/km.
Solid Conductor (Class 1)
| Cross Section (mm²) | Wire Structure (No. × mm) | Insulation (mm) | Overall Dia. (mm) | Weight (kg/km) | 20°C Res. (Ω/km) |
|---|---|---|---|---|---|
| 1.5 | 1 × 1.38 | 0.7 | 3.0 | 21.7 | 12.1 |
| 2.5 | 1 × 1.78 | 0.8 | 3.6 | 33.0 | 7.41 |
| 4 | 1 × 2.25 | 0.8 | 4.1 | 47.6 | 4.61 |
| 6 | 1 × 2.76 | 0.8 | 4.6 | 66.4 | 3.08 |
| 10 | 1 × 3.57 | 1.0 | 5.8 | 111.5 | 1.83 |
Stranded Conductor (Class 2)
| Cross Section (mm²) | Wire Structure (No. × mm) | Insulation (mm) | Overall Dia. (mm) | Weight (kg/km) | 20°C Res. (Ω/km) |
|---|---|---|---|---|---|
| 1.5 | 7 × 0.52 | 0.7 | 3.2 | 21.3 | 12.1 |
| 2.5 | 7 × 0.68 | 0.8 | 3.9 | 33.2 | 7.41 |
| 4 | 7 × 0.85 | 0.8 | 4.4 | 48.7 | 4.61 |
| 6 | 7 × 1.04 | 0.8 | 5.1 | 66.7 | 3.08 |
| 10 | 7 × 1.35 | 1.0 | 6.5 | 113.6 | 1.83 |
| 16 | 7 × 1.70 | 1.0 | 7.5 | 168.5 | 1.15 |
| 25 | 7 × 2.13 | 1.2 | 9.2 | 258.7 | 0.727 |
| 35 | 7 × 2.52 | 1.2 | 10.5 | 348.1 | 0.524 |
| 50 | 19 × 1.78 | 1.4 | 12.0 | 461.0 | 0.387 |
| 70 | 19 × 2.14 | 1.4 | 13.9 | 643.9 | 0.268 |
| 95 | 19 × 2.52 | 1.6 | 16.1 | 877.1 | 0.193 |
| 120 | 37 × 2.03 | 1.6 | 17.9 | 1,091.1 | 0.153 |
| 150 | 37 × 2.25 | 1.8 | 19.8 | 1,362.3 | 0.124 |
| 185 | 37 × 2.52 | 2.0 | 22.2 | 1,697.4 | 0.991 |
| 240 | 61 × 2.25 | 2.2 | 25.0 | 2,201.5 | 0.0754 |
| 300 | 61 × 2.52 | 2.4 | 27.9 | 2,725.6 | 0.0601 |
| 400 | 61 × 2.85 | 2.6 | 31.5 | 3,529.3 | 0.0470 |
| 500 | — | 2.6 | 34.8 | 4,326.9 | 0.0336 |
| 630 | — | 2.6 | 38.6 | 5,445.6 | 0.0283 |
Packaging & Delivery
| Parameter | Standard |
|---|---|
| Spool Type | Plastic spool / wooden drum (large sizes) / coil (small sizes) |
| Length per Spool | 100m (standard domestic); 500m/1000m for commercial; custom on request |
| Spool Marking | Manufacturer, BV/BVR (solid/stranded), voltage, cross-section, colour, length, weight, GB/T mark |
| Colour Options | Red, blue, green, yellow, black, white, green/yellow, brown, grey, orange, purple, yellow/green, pink |
| Outer Protection | Shrink-wrapped spools; carton boxes for mixed-colour kits; wooden pallets for bulk |
| Delivery Condition | Factory-new, tested per GB/T 5023 / BS 6004, test certificate on request |
Typical Applications
Single-core PVC house wire is the most basic electrical cable — the individual conductor that forms the foundation of every building's electrical infrastructure. Electricians pull multiple wires (phase, neutral, earth) through conduit to build complete circuits:
Residential Wiring
Standard single-core wire for lighting, socket, and appliance circuits in homes. Pulled through conduit per local building code.
Commercial Building
Fixed installation in conduit, trunking, and cable trays in offices, retail, and commercial buildings up to 450/750V.
Distribution Board Wiring
Internal wiring of consumer units (fuse boxes) and electrical panels — stranded for flexibility in tight enclosures.
Lighting Circuits
1.5mm² solid for domestic lighting ring — the most common electrical wire sold by volume. Low current, high volume application.
Asia-Pacific Markets
GB/T 5023 (=IEC 60227) certified. Standard wire for all Chinese and Southeast Asian building electrical installations.
UK / Commonwealth
BS 6004 certified. Accepted in UK, Ireland, Middle East, Africa, and all markets referencing British wiring standards.
