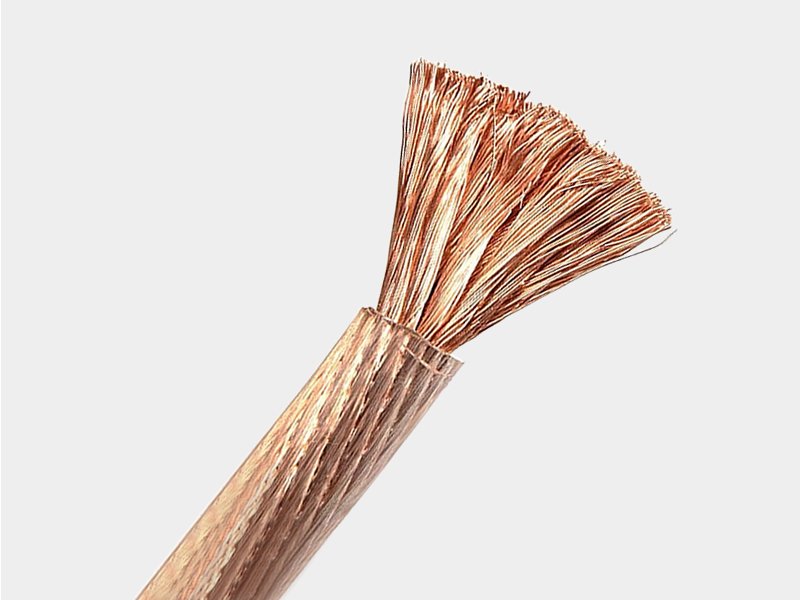

Clear Flexible Grounding Cable Earthing Copper Wire with Transparent PVC Jacket
Conductor: Soft drawn copper, ASTM B-172 rope-lay bunch strand, 665-2,109 × 0.010″
Insulation: Transparent PVC — visual inspection of copper before each use
Bending: 4 × D (tightest of any power cable), +5°C to +70°C flex
Sizes: 2 AWG (33.6mm²) to 4/0 AWG (107mm²), 100m roll
Application: Portable earthing jumpers for de-energised line maintenance
Standard: IEC 61138, ASTM B-172, EN 60332-1-2
Product Overview
Clear Flexible Grounding Cable with Transparent PVC Jacket is a 600V single-core heavy-gauge copper grounding jumper cable manufactured to IEC 61138 and ASTM B-172. Its defining feature is the fully transparent PVC jacket — allowing visual inspection of the copper conductor for strand breakage, corrosion, or mechanical damage before every use. This is not a permanent building earth wire; it is a temporary protective grounding jumper used by utility lineworkers when working on de-energised high-voltage circuits. Before work begins, the lineman applies these flexible jumpers to bond all phases together and to earth, creating an equipotential zone that protects against accidental re-energisation or induced voltages from adjacent live circuits.
The cable is constructed with an extraordinarily fine-stranded soft drawn bare copper conductor — up to 2,109 individual strands of 0.010-inch (0.254 mm) wire in the 4/0 AWG variant. This extreme stranding count, combined with a bending radius of just 4× the cable diameter (the tightest of any power cable in our range), produces a cable that handles like rope — essential for linemen who must manipulate heavy-gauge copper conductors at arm's length from a bucket truck or while wearing insulating gloves. The transparent PVC jacket is formulated for outdoor UV exposure, moisture resistance, and flexibility at temperatures from +5°C to +70°C during handling, with a short-circuit withstand of 160°C for 5 seconds.
Unlike permanent earthing conductors that are buried in the ground or installed in conduit for decades, clear grounding jumpers are portable equipment — stored in the line truck, inspected before each job, clamped to the de-energised conductors with temporary earth clamps, and removed after work is complete. The transparent jacket is the critical safety feature: it enables the mandatory pre-use visual inspection required by utility safety codes such as IEEE 1048 and IEC 61230 without cutting or stripping the insulation. Available in four large AWG sizes (2, 1/0, 2/0, 4/0), these jumpers provide the massive fault current capacity needed to safely bypass a high-voltage line if it is accidentally re-energised during maintenance — the cable must survive long enough for the upstream protection (circuit breaker or fuse) to operate.
Ultra-Flexible Fine Strand Copper
Soft drawn bare copper, 665-2,109 strands of 0.010" wire per ASTM B-172. Rope-like flexibility, 4×D bending radius — handles like cord, not cable.
Transparent PVC Jacket
Clear PVC insulation allows visual inspection of the copper conductor for strand breakage, corrosion, or damage — mandatory pre-use safety check for temporary grounding.
600V Temporary Grounding
Per IEC 61138 for portable earthing equipment. Designed for temporary protective bonding of de-energised circuits during maintenance — not for permanent installation.
Heavy AWG 2-4/0 Range
2 AWG (33.6mm²) to 4/0 AWG (107mm²). Massive fault current capacity for high-voltage line maintenance. 100m standard roll length.
Utility Safety Equipment
Used with temporary earth clamps per IEEE 1048 / IEC 61230. Creates equipotential zone protecting linemen from re-energisation and induced voltages.
Flexibility at Temperature
70°C continuous, 160°C/5s short-circuit. Bending radius 4×D — tightest in our product line. Flex temp range +5°C to +70°C.
Technical Characteristics
| Rated Voltage | 600V |
| Max. Conductor Temperature | +70°C (continuous) |
| Max. Short-Circuit Temperature | +160°C (max 5 seconds) |
| Operating Temperature (Flexed) | +5°C to +70°C |
| Min. Bending Radius | 4 × cable diameter |
| Flammability | EN 60332-1-2 |
| Conductor Type | Flexible stranded soft drawn bare copper, per ASTM B-172 |
| Insulation Type | Transparent polyvinyl chloride (PVC) |
Applicable Standards
| Standard | Scope |
|---|---|
| IEC 61138 | International standard for portable earthing equipment — cables for portable earthing and short-circuiting. The primary standard governing temporary protective grounding jumpers. |
| ASTM B-172 | ASTM standard for rope-lay stranded copper conductors having bunch-stranded members. Governs the ultra-flexible fine-strand conductor construction unique to portable earthing cables. |
| EN 60332-1-2 | Single cable vertical flame test. Fire safety requirement for utility equipment cables used in substations and overhead line environments. |
| IEEE 1048 | IEEE Guide for Protective Grounding of Power Lines. Referenced utility safety practice mandating visual inspection of grounding jumpers before each use — enabled by the transparent jacket. |
Technical Specifications
Flexible stranded soft drawn bare copper per ASTM B-172. Transparent PVC insulation. Four AWG sizes. Ultra-fine bunch stranding: 665 to 2,109 individual 0.010-inch wires. 100m standard roll length per export wooden case and pallet. US customary units: 1 mil = 0.001 inch = 0.0254 mm.
| Size (AWG) | Stranding (No. × inches) | Nominal Area (mm²) | Insulation (mils) | Insulation (mm) | Cable O.D. (inches) | Cable O.D. (mm) |
|---|---|---|---|---|---|---|
| 2 | 665 × 0.010 | 33.6 | 95 | 2.41 | 0.54 | 13.7 |
| 1/0 | 1,064 × 0.010 | 53.5 | 95 | 2.41 | 0.65 | 16.5 |
| 2/0 | 1,323 × 0.010 | 67.4 | 110 | 2.79 | 0.71 | 18.0 |
| 4/0 | 2,109 × 0.010 | 107.2 | 110 | 2.79 | 0.85 | 21.6 |
Packaging & Delivery
| Parameter | Standard |
|---|---|
| Package | 100m per roll, export wooden case and pallet |
| Roll Marking | Manufacturer, AWG size, 600V, IEC 61138, conductor stranding, length, weight, batch number |
| Cable Ends | Heat-shrink end caps to prevent moisture ingress during storage |
| Outer Protection | Wooden case prevents crushing of transparent PVC jacket during long-distance shipping |
| Delivery Condition | Factory-new, tested per IEC 61138, ASTM B-172 |
Typical Applications
Clear transparent grounding jumpers are utility-grade personal protective equipment — not building wire. They are used exclusively for temporary protective earthing during maintenance of de-energised electrical equipment:
Overhead Line Maintenance
Temporary bonding of all phases to earth before linemen work on de-energised power lines. Creates safe equipotential zone per IEEE 1048.
Substation Maintenance
Portable earthing of busbars, circuit breakers, and disconnect switches during maintenance outages in transmission and distribution substations.
Visual Inspection Before Use
Transparent jacket enables mandatory pre-use inspection — lineman checks for broken strands, discolouration, and jacket integrity before mounting clamps.
Generator & Motor Earthing
Temporary protective grounding of large rotating machines during overhaul, winding tests, and bearing replacement — flexible cable contours around frame obstructions.
Utility Line Truck Equipment
Standard issue on every line maintenance truck — stored on the truck, inspected at the start of each shift, deployed as personal protective equipment.
Protection Against Induced Voltage
Adjacent live circuits induce voltage on de-energised lines through capacitive and inductive coupling. Grounding jumpers short this induced voltage to earth, protecting workers.
