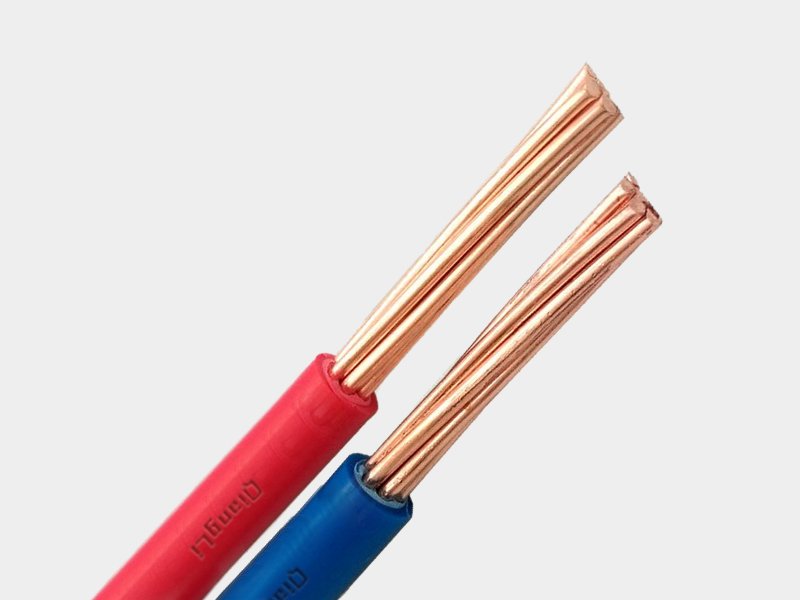

H05V-R H07V-R PVC Insulated Building Wire
Conductor: Class 2 stranded copper, 7-61 wire concentric lay per EN 60228
Insulation: PVC, 0.6-2.6mm wall, 70°C continuous, 2,000V test
Bending: 4×D (≤6mm) / 6×D (6-12mm) / 8×D (>12mm), flex +5°C to +70°C
Range: 19 sizes 0.75-400mm², 100m/roll, 11-3,800 kg/km
Unique: Min insulation resistance @ 70°C column — critical for long conduit runs
Standard: EN 50525-2-31, BS EN 50525-2-31, HAR marked
Product Overview
H05V-R / H07V-R PVC Insulated Building Wire is a single-core Class 2 stranded copper conductor PVC insulated installation wire manufactured to the CENELEC harmonised standard EN 50525-2-31 and BS EN 50525-2-31. The -R suffix designates rigid stranded construction — 7-strand concentric lay for conductor sizes up to 25mm², 19-strand up to 95mm², 37-strand up to 185mm², and 61-strand for 240-400mm². This occupies the middle tier in the European harmonised wire strand flexibility spectrum: more flexible than solid -U wire (Class 1) but less flexible than -K wire (Class 5). H05V-R covers 0.75-1.5mm² at 300/500V; H07V-R covers 1.5-400mm² at 450/750V — the 1.5mm² cross-section being the overlap size available in both voltage classes.
The Class 2 7-strand construction gives H05V-R/H07V-R the ideal balance for conduit and trunking installations: flexible enough to pull through 90-degree conduit bends without kinking, yet structured enough to hold its shape on cable trays and ladder racks without sagging. The minimum bending radius of 4×D (≤6mm OD) to 8×D (>12mm OD) represents a graduated scale — small H05V-R signal wires (0.75mm², 2.8mm OD) bend to just 11mm radius, while the heavy 400mm² H07V-R (33.5mm OD) requires 268mm. The PVC insulation compound is rated 70°C continuous with a 2,000V test voltage and EN 60332-1-2 flame retardancy, with an operating range of +5°C to +70°C in motion and a 160°C/5s short-circuit withstand. Each roll is 100m with export wooden case and pallet — standardised packaging across the entire harmonised building wire product line.
H05V-R/H07V-R is the contractor-grade single-core installation wire for European commercial and industrial electrical projects. Unlike the solid -U wire which stays where it's terminated, and the -K flexible wire which routes through complex panel interiors, the -R stranded wire is the general-purpose workhorse — ordered by the reel for conduit pulls, cable tray runs, and equipment feeder connections where reliability and ease of installation matter more than extreme flexibility. The 7-strand concentric lay is the most cost-effective stranding pattern in the copper building wire market, offering better conductivity per kg of copper than Class 5 flexible due to the lower wire-drawing and stranding manufacturing cost.

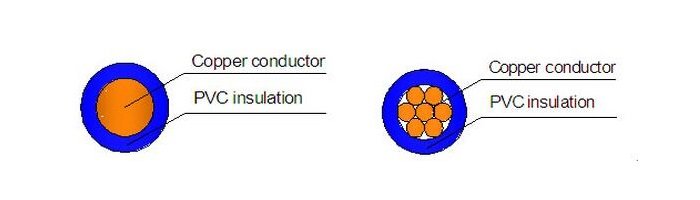

Left Diagram — Solid Conductor (Reference):
Copper conductor — Single solid orange core — shown for comparison; H05V-R/H07V-R uses stranded (right)
PVC insulation — Blue outer ring, uniform wall thickness
Right Diagram — 7-Strand Conductor (The -R Product):
Copper conductor — Seven orange circular strands in hexagonal packing — this is the actual Class 2 stranded construction
PVC insulation — Blue outer ring, same compound and thickness as solid variant
Class 2 Stranded Copper
7-strand (≤25mm²), 19-strand (35-95mm²), 37-strand (120-185mm²), 61-strand (240-400mm²). Concentric lay per EN 60228. Cost-effective conductor for conduit pulls.
PVC Insulation 70°C
0.6-2.6mm wall by size. 70°C continuous, 160°C/5s short-circuit. 2,000V test. Flame retardant per EN 60332-1-2.
Two Voltage Tiers
H05V-R: 300/500V (0.75-1.5mm²). H07V-R: 450/750V (1.5-400mm²). 1.5mm² overlaps both — the transition size.
Graduated Bending: 4-8×D
4×D (≤6mm), 6×D (6-12mm), 8×D (>12mm). Less flexible than -K (4-6×D) but holds shape better on cable trays.
19 Sizes to 400mm²
0.75mm² (OD 2.8mm, 11 kg/km) to 400mm² (OD 33.5mm, 3,800 kg/km). Full range for signal to heavy power feeders.
Insulation Resistance Data
Unique among building wires: Min insulation resistance @ 70°C column — a critical spec for long conduit runs where leakage current matters.
Technical Characteristics
| H05V-R Nominal Voltage | 300/500V (0.75-1.0mm²) |
| H07V-R Nominal Voltage | 450/750V (1.5-400mm²) |
| Test Voltage | 2,000V AC |
| Temperature Range (in motion) | +5°C to +70°C |
| Short-Circuit Temperature | 160°C / max 5 seconds |
| Bending Radius — OD ≤ 6mm | 4 × outer diameter |
| Bending Radius — OD 6-12mm | 6 × outer diameter |
| Bending Radius — OD > 12mm | 8 × outer diameter |
Applicable Standards
| Standard | Scope |
|---|---|
| EN 50525-2-31 | CENELEC harmonised standard for single-core non-sheathed PVC insulated cables rated up to 450/750V. Primary standard covering H05V-R and H07V-R. |
| BS EN 50525-2-31 | British adoption — mandatory for UK market. BS mark required for installations under BS 7671 (IET Wiring Regulations). |
| EN 60228 | Conductor standard specifying Class 2 stranded construction — 7-strand to 61-strand concentric lay per cross-section. |
| EN 60332-1-2 | Single cable vertical flame test with 1kW flame. Fire safety requirement for all CENELEC harmonised installation wires. |
Harmonised Wire Trilogy — Complete Flexibility Spectrum
| Type | Stranding | Bending | Range | Use Case |
|---|---|---|---|---|
| H05V-U / H07V-U | Class 1 (solid, 1 wire) | 4×D | 0.5-10mm² | Fixed terminals — never moves after termination |
| H05V-R / H07V-R | Class 2 (stranded, 7-61 wires) | 4-8×D | 0.75-400mm² | Conduit pulls & cable trays — general purpose workhorse |
| H05V-K / H07V-K | Class 5 (flexible, 30-2,035 wires) | 4-6×D | 0.5-240mm² | Panel interiors — complex routing through switchgear |
Technical Specifications
Class 2 stranded plain copper per EN 60228. PVC insulation per EN 50525-2-31. Overall diameter given as maximum. Min insulation resistance measured at 70°C conductor temperature — a unique column among harmonised building wires, critical for long conduit runs. 19 sizes, 100m per roll, export wooden case.
| Type | Cross Section (mm²) | Conductor (No. × mm) | Insulation (mm) | OD Max (mm) | Insul. Res. 70°C (Ω/km) | Weight (kg/km) |
|---|---|---|---|---|---|---|
| H05V-R — 300/500V | ||||||
| H05V-R | 0.75 | 7 × 0.37* | 0.6 | 2.8 | 0.012 | 11 |
| H05V-R | 1.0 | 7 × 0.43 | 0.6 | 3.0 | — | 14 |
| H05V-R / H07V-R | 1.5 | 7 × 0.52 | 0.7 | 3.4 | 0.010 | 21 |
| H07V-R — 450/750V | ||||||
| H07V-R | 2.5 | 7 × 0.67 | 0.8 | 4.2 | 0.009 | 32 |
| H07V-R | 4 | 7 × 0.85 | 0.8 | 4.8 | 0.008 | 45 |
| H07V-R | 6 | 7 × 1.04 | 0.8 | 5.4 | 0.007 | 65 |
| H07V-R | 10 | 7 × 1.35 | 1.0 | 6.8 | 0.007 | 110 |
| H07V-R | 16 | 7 × 1.70 | 1.0 | 8.0 | 0.005 | 165 |
| H07V-R | 25 | 7 × 2.14 | 1.2 | 9.8 | 0.005 | 264 |
| H07V-R | 35 | 7 × 2.52 | 1.2 | 11.0 | 0.004 | 360 |
| H07V-R | 50 | 19 × 1.78 | 1.4 | 13.0 | 0.005 | 490 |
| H07V-R | 70 | 19 × 2.14 | 1.4 | 15.0 | 0.004 | 685 |
| H07V-R | 95 | 19 × 2.52 | 1.6 | 17.5 | 0.004 | 946 |
| H07V-R | 120 | 37 × 2.03 | 1.6 | 19.0 | 0.003 | 1,181 |
| H07V-R | 150 | 37 × 2.25 | 1.8 | 21.0 | 0.003 | 1,453 |
| H07V-R | 185 | 37 × 2.52 | 2.0 | 23.5 | 0.003 | 1,821 |
| H07V-R | 240 | 61 × 2.24 | 2.2 | 26.5 | 0.003 | 2,383 |
| H07V-R | 300 | 61 × 2.50 | 2.4 | 29.5 | 0.003 | 2,983 |
| H07V-R | 400 | 61 × 2.85 | 2.6 | 33.5 | 0.003 | 3,800 |
Packaging & Delivery
| Parameter | Standard |
|---|---|
| Package | 100m per roll, export wooden case & pallet |
| Roll Marking | Manufacturer, H05V-R/H07V-R, voltage, cross-section, length, weight, batch, HAR/BS marks |
| Colour Options | Standard IEC 60446: blue, brown, black, grey, green/yellow, white, red |
| Outer Protection | Wooden case — identical packaging across all H05V/H07V series for mixed-order container loading |
| Delivery Condition | Factory-new, tested per EN 50525-2-31 / BS EN 50525-2-31 |
Typical Applications
H05V-R/H07V-R stranded wire is the general-purpose single-core building wire for European electrical contractors — the wire on every job site for conduit pulls, cable tray runs, and equipment connections:
Conduit & Trunking Pulls
Standard contractor-grade wire for pulling through conduit, trunking, and cable trays. Stranded construction pulls smoothly through 90° bends without kinking.
Equipment Feeders
Power feeder connections from distribution boards to motors, HVAC equipment, and industrial machinery. 16-400mm² range covers all building feeder sizes.
Lighting Circuit Wiring
1.5mm² and 2.5mm² H07V-R for domestic and commercial lighting circuits in conduit — the most common wire size on European building sites.
Panel Feeder Connections
Straight runs from circuit breakers to terminal blocks inside electrical panels where Class 2 stranded is easier to dress than solid wire.
EU / UK Building Projects
HAR mark + BS mark dual certification. Accepted across all CENELEC member states and the United Kingdom.
Insulation Resistance Critical
Unique 70°C insulation resistance data for long conduit runs where cumulative leakage current must be calculated per circuit design.
