0.6/1kV Flame Retardant PVC Insulated Wire for Grounding (GV, TFR-GV)
Conductor: Annealed copper, 7-strand (≤10mm²) / Compact Circular C.C (≥16mm²)
Insulation: Flame retardant PVC, GV (standard) / TFR-GV (enhanced tray rated)
Colour: Solid green — KS C IEC 60445 Korean grounding standard
Range: 1.5-630mm², 20 sizes, 65-6,740 kg/km
Length: 300m (≤150mm²), 200m (185-300mm²), 150m (400-630mm²)
Standard: KS C IEC 60502, IEC 60332-3 Cat. A (TFR-GV)
Product Overview

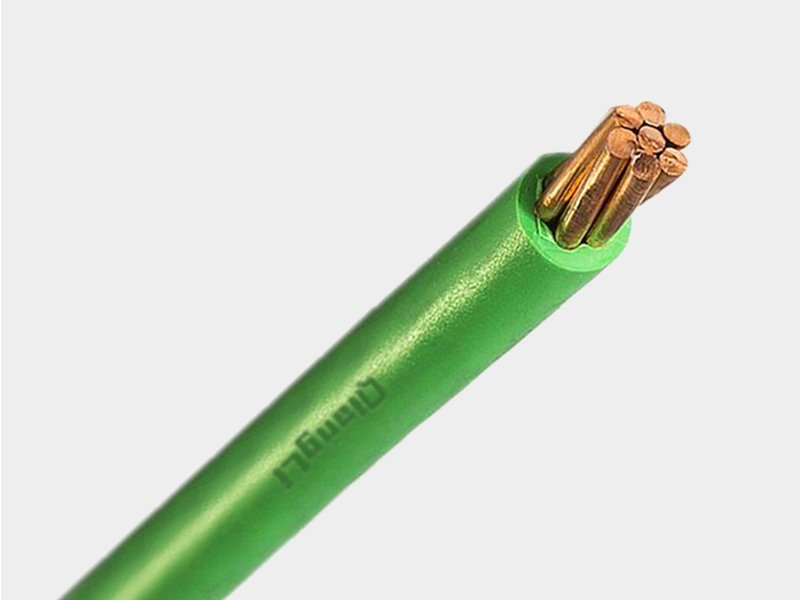

0.6/1kV Flame Retardant PVC Insulated Wire for Grounding — GV & TFR-GV is a single-core copper conductor grounding cable manufactured to the Korean national standard KS C IEC 60502 (the Korean adoption of IEC 60502). Available in two flame-retardant PVC insulation grades: GV (standard flame retardant PVC grounding wire) and TFR-GV (Tray Frame-Retardant PVC — enhanced flame retardancy for cable tray and grouped installations). The green insulation colour is the Korean standard identification for grounding/earth conductors — green alone, not the green/yellow stripe common in IEC markets. Conductors range from 1.5mm² to 630mm² with 7-strand construction for smaller sizes (≤10mm²) transitioning to compact circular (C.C) compressed stranded construction for larger sizes (16-630mm²), providing reduced overall diameter for equivalent copper cross-section. The 0.6/1kV voltage rating is a full class above the more common 450/750V building wire earth conductors — GV/TFR-GV is qualified for direct use in LV power distribution grounding circuits up to the transformer neutral earthing point.
Unlike European harmonised earth wires (H07V-U/K green/yellow, 450/750V) which are restricted to protected installations, GV/TFR-GV with its 0.6/1kV rating and enhanced flame retardancy is designed for installation in cable trays, conduits, and direct clipping in industrial and commercial electrical rooms where grouped cable fire propagation is a regulatory concern. The TFR-GV variant's "Frame-Retardant" designation indicates testing per IEC 60332-3 (Category A, bunched cable vertical flame spread test) — a more severe fire test than the single-cable IEC 60332-1 applied to standard building wires. The 3500V/5min test voltage is 75% higher than the 2000V test used for 450/750V house wire — appropriate for the higher system voltage where insulation integrity is safety-critical for earth fault current paths. Standard reel lengths are 300m per roll (<15mm²), 200m (185-300mm²), and 150m (400-630mm²) — packaged in export wooden cases on pallets.

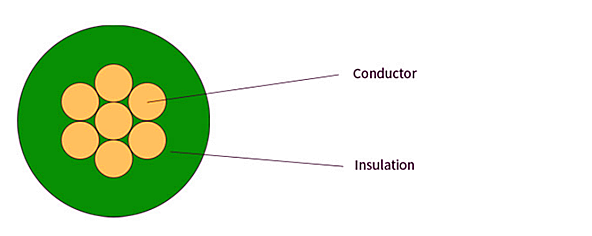

Conductor — 7-strand orange copper, Class 2 stranded concentric lay
Insulation — Green flame retardant PVC, uniform wall thickness per size (2.2-5.0mm)
Colour Code — Solid green = Korean standard grounding conductor identification (KS C IEC 60445)
Copper Class 2 + Compact Circular
7-strand for 1.5-10mm². Compact circular (C.C) compressed for 16-630mm² — reduced OD at same copper CSA vs standard stranded.
Flame Retardant PVC — GV & TFR-GV
GV = standard FR-PVC grounding. TFR-GV = enhanced Tray Frame-Retardant for bunched cable tray installations per IEC 60332-3 Cat. A.
0.6/1kV Rating
Full LV power class — usable up to transformer neutral earthing. One voltage class above 450/750V building wire earth conductors. 3500V/5min test.
Solid Green Insulation
Korean standard grounding identification — green alone (not green/yellow stripe per IEC). KS C IEC 60445 compliant for Korean electrical code.
20 Sizes to 630mm²
1.5-630mm² full range. 300m rolls (≤150mm²), 200m (185-300mm²), 150m (400-630mm²). Export wooden case & pallet.
KS C IEC 60502 Certified
Korean national adoption of IEC 60502. Required for all electrical installations in South Korea. Better flame resistance than standard PVC.
Technical Characteristics
| Rated Voltage | 600/1000V (0.6/1kV) |
| Test Voltage | 3,500V / 5 minutes |
| Conductor Material | Annealed copper — solid, circular, or compact circular (C.C) |
| Insulation | Flame retardant PVC — GV (standard) or TFR-GV (enhanced tray rated) |
| Insulation Colour | Green — KS C IEC 60445 grounding conductor identification |
| Flame Performance | Improved over standard PVC — TFR-GV rated for IEC 60332-3 Category A (bunched cable) |
| Standard Lengths | 300m (≤150mm²), 200m (185-300mm²), 150m (400-630mm²) |
| Standard | KS C IEC 60502 (Korean adoption of IEC 60502) |
Applicable Standards
| Standard | Scope |
|---|---|
| KS C IEC 60502 | Korean national standard — adoption of IEC 60502 for power cables with extruded insulation rated 1-30kV. Primary standard for GV and TFR-GV grounding cables. |
| KS C IEC 60445 | Korean standard for identification of conductors by colours — specifies solid green for protective earth (PE) conductor. Different from IEC green/yellow stripe. |
| IEC 60332-3 Cat. A | Bunched cable vertical flame spread test — TFR-GV rated for grouped installation in cable trays. More severe than single-cable IEC 60332-1 used for building wire. |
Global Grounding Wire Comparison
| Designation | Standard | Voltage | Insulation Colour | Region |
|---|---|---|---|---|
| GV / TFR-GV | KS C IEC 60502 | 0.6/1kV | Green (solid) | South Korea |
| H07V-U / H07V-K G/Y | EN 50525-2-31 | 450/750V | Green/Yellow (stripe) | EU / CENELEC |
| BV / BVR G/Y | GB/T 5023 | 450/750V | Green/Yellow (stripe) | China |
| THHN/THWN Green | UL 83 | 600V | Green (solid) | USA / Canada |
Technical Specifications
Annealed copper conductor per KS C IEC 60502. 7-strand concentric lay for ≤10mm², compact circular (C.C) compressed for ≥16mm² — C.C compression reduces overall diameter vs standard stranded at the same copper cross-section. Flame retardant PVC insulation, green. DC resistance at 20°C per KS C IEC 60228 copper maximums. All sizes single core, 20 variants.
| Cross Section (mm²) | Conductor (No. × mm) | Conductor OD (mm) | Insulation (mm) | Overall OD (mm) | 20°C Res. (Ω/km) | Weight (kg/km) | Length (m) |
|---|---|---|---|---|---|---|---|
| 1.5 | 7 × 0.53 | 1.59 | 2.2 | 6.5 | 12.1 | 65 | 300 |
| 2.5 | 7 × 0.67 | 2.01 | 2.2 | 7.0 | 7.41 | 80 | 300 |
| 4 | 7 × 0.85 | 2.55 | 2.4 | 8.0 | 4.61 | 105 | 300 |
| 6 | 7 × 1.04 | 3.12 | 2.4 | 8.5 | 3.08 | 135 | 300 |
| 10 | 7 × 1.35 | 4.5 | 2.4 | 9.5 | 1.83 | 185 | 300 |
| 16 | C.C | 4.7 | 2.4 | 10.0 | 1.15 | 240 | 300 |
| 25 | C.C | 5.9 | 2.6 | 12.0 | 0.727 | 350 | 300 |
| 35 | C.C | 6.9 | 2.6 | 13.0 | 0.524 | 440 | 300 |
| 50 | C.C | 8.1 | 2.8 | 14.5 | 0.387 | 615 | 300 |
| 70 | C.C | 9.8 | 2.8 | 16.0 | 0.268 | 800 | 300 |
| 95 | C.C | 11.4 | 3.1 | 18.5 | 0.193 | 1,080 | 300 |
| 120 | C.C | 12.9 | 3.1 | 20.0 | 0.153 | 1,330 | 300 |
| 150 | C.C | 14.4 | 3.4 | 22.0 | 0.124 | 1,640 | 300 |
| 185 | C.C | 15.9 | 3.7 | 25.0 | 0.0991 | 2,040 | 200 |
| 240 | C.C | 18.3 | 4.0 | 28.0 | 0.0754 | 2,595 | 200 |
| 300 | C.C | 20.5 | 4.3 | 30.0 | 0.0601 | 3,235 | 200 |
| 400 | C.C | 23.2 | 4.6 | 34.0 | 0.0470 | 4,200 | 150 |
| 500 | C.C | 26.4 | 4.9 | 38.0 | 0.0366 | 5,060 | 150 |
| 630 | C.C | 30.2 | 5.0 | 42.0 | 0.0283 | 6,740 | 150 |
Packaging & Delivery
| Parameter | Standard |
|---|---|
| Package | 300m/roll (≤150mm²), 200m/roll (185-300mm²), 150m/roll (400-630mm²), export wooden case & pallet |
| Roll Marking | Manufacturer, GV/TFR-GV, 0.6/1kV, cross-section, length, weight, batch, KS mark |
| Colour | Green (solid) — KS C IEC 60445 grounding conductor identification |
| Outer Protection | Wooden case — standardised for Korean export cables; heavy-gauge (≥400mm²) on reinforced wooden drums |
| Delivery Condition | Factory-new, tested per KS C IEC 60502, KS mark certified, test certificate on request |
Typical Applications
GV and TFR-GV grounding wires are the standard protective earth conductors in Korean industrial and commercial electrical installations — from appliance earthing up to transformer neutral grounding in 0.6/1kV systems:
Equipment & Appliance Grounding
Standard green grounding wire for electrical appliances and equipment in Korean commercial and industrial installations per KS C IEC 60364.
Cable Tray Grounding (TFR-GV)
Tray Frame-Retardant type specifically for grouped installations in cable trays — IEC 60332-3 Cat. A certified for bunched cable fire safety.
Distribution Board Earthing
Main earth busbar to earth electrode connections. 0.6/1kV rating enables use up to transformer neutral — one class above 450/750V building wire.
Industrial Plant Grounding Grid
Heavy gauge (185-630mm²) for ground grid connections in substations, factories, and power plants — compact circular reduces OD for easier installation.
Korean Market
KS C IEC 60502 certified — mandatory for all electrical installations in South Korea. Solid green insulation = Korean standard grounding colour.
Enhanced Fire Safety
TFR-GV variant with improved flame resistance over standard PVC — critical for grouped cable installations where fire propagation between cables is a regulatory concern.
