MC4 Connector
Standard: IEC 62852 (DC connectors for PV systems)
Rated Voltage: 1500 V DC
Rated Current: 30 A continuous
Contact Resistance: < 0.5 mΩ (new)
IP Rating: IP67 (mated); IP2X (unmated)
Operating Temperature: −40 °C to +85 °C
Contact Material: Tinned copper alloy (CuSn)
Housing Material: UV-stabilised PPO, halogen-free, UL 94 V-0
Compatible Cable: 2.5 / 4 / 6 / 10 mm² (H1Z2Z2-K solar cable)
Product Overview

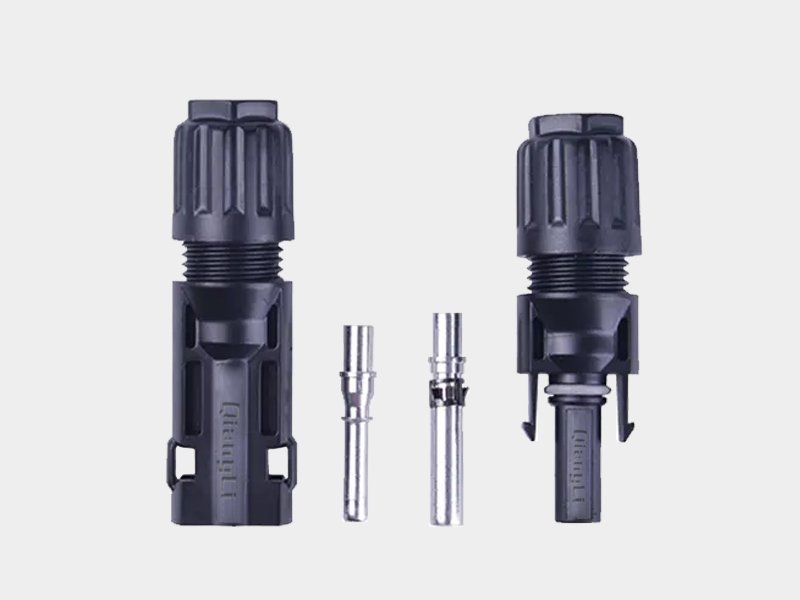

MC4 Solar Connector is the universal single-contact plug-and-socket connector for photovoltaic DC wiring. The designation "MC4" stands for Multi-Contact, 4 mm contact pin diameter — the global de-facto standard originated by Stäubli Electrical Connectors (formerly Multi-Contact) and now defined by IEC 62852. Every pair consists of a male plug and a female socket; both lock together with an audible click and can only be separated with a dedicated disconnect tool — preventing accidental disconnection under load.
Rated at 1500 V DC / 30 A and sealed to IP67, MC4 connectors are compatible with all H1Z2Z2-K solar cables from 2.5 mm² to 10 mm² conductor cross-section. The UV-stabilised PPO housing withstands 25+ years of outdoor exposure; the tinned copper alloy contact maintains low contact resistance for the lifetime of the PV system. Our MC4 connectors are TUV Rheinland certified and cross-compatible with connectors from major manufacturers including Stäubli, Amphenol, and Huawei equivalents.
IP67 Weatherproof Seal
Fully dust-tight and protected against temporary water immersion. Connectors remain safe and low-resistance in rain, condensation, and humid rooftop environments for 25+ years.
1500 V DC Rated
Compliant with modern high-voltage PV systems up to 1500 V DC system voltage — the current industry standard for utility-scale and commercial solar projects.
30 A Continuous Current
Rated 30 A continuous at 85 °C connector body temperature, covering the full current output of standard 60/72/144-cell PV modules in all string configurations.
Tool-Required Disconnect
The snap-lock mechanism prevents accidental disconnection under live DC load — a critical safety requirement since DC arcing at PV voltages cannot self-extinguish like AC arcing.
Low Contact Resistance
Tinned copper alloy contact with spring retention maintains <0.5 mΩ contact resistance throughout the connector life — negligible power loss even at maximum current.
Cross-Compatible Design
Mechanically and electrically compatible with IEC 62852 compliant MC4 connectors from Stäubli, Amphenol, Huawei, and equivalents. Works with all standard MC4 disconnect tools.
Technical Specifications
Electrical & Mechanical Parameters
| Standard | IEC 62852 (Connectors for DC-application in photovoltaic systems) |
|---|---|
| Rated Voltage | 1500 V DC (IEC 62852 Class II) |
| Rated Current | 30 A continuous |
| Contact Resistance | < 0.5 mΩ (new); < 1.0 mΩ (after ageing per IEC 62852) |
| Insulation Resistance | > 1000 MΩ (500 V DC test) |
| Dielectric Withstand | 6000 V DC / 1 min (no breakdown) |
| IP Rating | IP67 (mated pair); IP2X (unmated, safety class) |
| Operating Temperature | −40 °C to +85 °C (continuous) |
| Contact Material | Tinned copper alloy (CuSn alloy) |
| Housing Material | UV-stabilised PPO (polyphenylene oxide), halogen-free |
| Cable Entry Range | OD 4.0–8.5 mm (fits H1Z2Z2-K 2.5–10 mm² solar cable) |
| Compatible Cable Cross-Section | 2.5 mm² / 4 mm² / 6 mm² / 10 mm² |
| Crimp Contact Pin Diameter | 4 mm (MC4 standard) |
| Mating Cycles | ≥ 100 (IEC 62852) |
| Locking | Snap-lock; requires MC4 disconnect tool (spanner type) for unmating |
| Flammability | UL 94 V-0 |
| Certification | TUV Rheinland, CE, RoHS |
| Supply | Sold as pairs (1× male + 1× female); bulk bag or box packaging |
Crimp Specification by Cable Size
| Cable Cross-Section (mm²) | Cable OD Range (mm) | Crimp Contact Size | Recommended Crimp Tool | Crimp Force (kN) |
|---|---|---|---|---|
| 2.5 | 4.0 – 6.5 | 2.5 mm² | MC4 crimp tool (hex 3.5 / 4.0) | 2.0 – 2.5 |
| 4 | 5.0 – 7.0 | 4 mm² | MC4 crimp tool (hex 4.0 / 5.0) | 2.5 – 3.0 |
| 6 | 6.0 – 7.5 | 6 mm² | MC4 crimp tool (hex 5.0 / 6.0) | 3.0 – 3.5 |
| 10 | 7.0 – 8.5 | 10 mm² | MC4 crimp tool (hex 6.0 / 8.0) | 3.5 – 4.0 |
Certifications & Standards
How to Install MC4 Connectors
Correct installation is critical — a poorly crimped or improperly sealed MC4 connector is the leading cause of PV system hot spots, arc faults, and fire incidents. Follow this procedure for every termination.
Step-by-Step Crimping & Assembly
- Strip the cable: Remove 18–20 mm of outer jacket (XLPO). Then strip 12–14 mm of insulation to expose the tinned copper conductor. Do not nick or cut conductor strands.
- Slide on the cable gland and locking nut: Thread the back nut and cable gland seal onto the cable before inserting the contact. Once the contact is crimped, the gland cannot be added retroactively.
- Insert conductor into crimp contact: Push the stripped conductor fully into the crimp barrel of the correct-size contact (2.5 / 4 / 6 / 10 mm²). All strands must be inside the barrel — no stray wires outside.
- Crimp with the correct hex die: Use a ratchet MC4 crimp tool with the hex die matching the contact size. Apply full crimp force until the ratchet releases. Verify the contact cannot be pulled out with 50 N hand force.
- Inspect the crimp: The barrel should be uniformly compressed with no cracks, splits, or flared edges. A visual inspection and a pull test (≥ 50 N) confirm a good crimp.
- Insert contact into connector housing: Push the crimped contact into the housing until you hear/feel a click — the secondary lock has engaged. A gentle tug backward confirms retention.
- Tighten the cable gland: Thread and finger-tighten the back nut to compress the seal around the cable jacket. Over-tightening can split the seal; under-tightening compromises IP67.
- Mate the connector pair: Align male and female, push together until the snap-lock clicks. Never force-mate misaligned connectors. Verify mating by a gentle pull — a correctly locked pair will not separate without a disconnect tool.
How to Safely Disconnect MC4 Connectors
- De-energise the string first: Switch off the inverter and confirm DC voltage is zero with a calibrated multimeter. Never disconnect MC4 connectors under live load — DC arcing at PV voltages does not self-extinguish and can cause fire.
- Use the MC4 disconnect tool (spanner type): Insert the forked end of the tool into the locking collar slots on the female connector. Rotate to release the snap-lock tab.
- Pull apart with one hand on each connector: Once unlocked, the connectors slide apart easily. Do not use pliers or force — damaged lock tabs cannot be re-used safely.
Typical Applications
Module String Wiring
Connect PV modules in series strings. Each module junction uses one male + one female MC4 pair.
Residential Rooftop PV
Standard termination for rooftop string wiring from modules to inverter DC input.
Utility-Scale Solar Farms
Thousands of MC4 pairs per MW-class project — reliable, fast, tool-free string connection at scale.
Battery Storage DC Links
Connects PV array output to charge controllers and BESS DC input in off-grid and hybrid systems.
Field Repair & Replacement
Re-terminate damaged pigtails without replacing the full cable run. Restore IP67 with a fresh connector pair.
Portable & Off-Grid Solar
Universal MC4 interface on portable panels, camping kits, boat and RV solar systems worldwide.
