TYIR / TYIR 50 OL-AL Cable
Phase Conductor: Concentrically stranded aluminium (RM)
Neutral Carrier: Steel-aluminium composite (ACSR type)
Insulation: Weather-resistant black PVC, 70°C / 160°C short-circuit
Configurations: 2-5 cores, phase + street lighting auxiliaries (74 variants)
Temperature: -40°C to +70°C operating, min +5°C laying
Standard: ST 125-2006, SR HD 626 S1
Product Overview

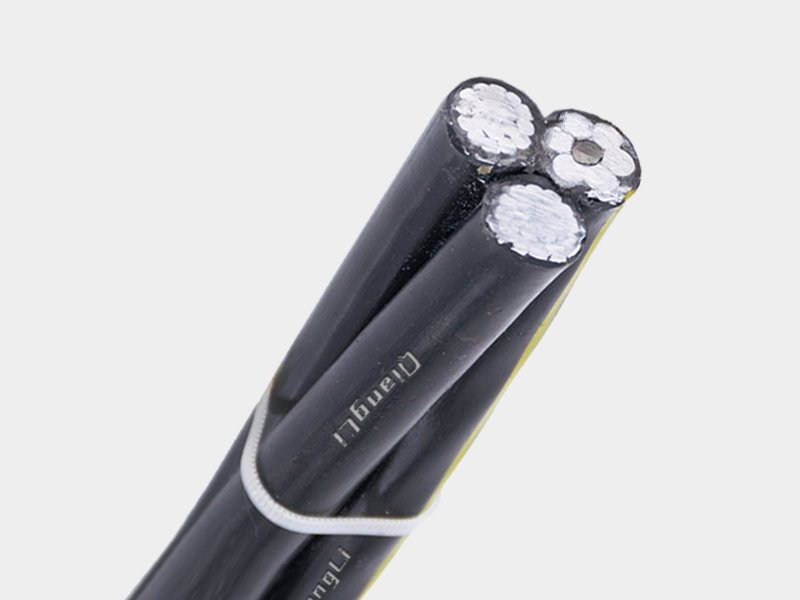

TYIR / TYIR 50 OL-AL Cable is a 0.6/1kV aerial bundled cable (ABC) with aluminium phase conductors and a steel-aluminium neutral carrier, PVC insulated and twisted into a bundle. Manufactured to Romanian standard ST 125-2006 and harmonised European standard SR HD 626 S1. Phase conductors use concentrically stranded aluminium (RM); the neutral conductor is a steel-aluminium composite carrier (ACSR type) providing both current return path and mechanical support for overhead spans. TYIR covers standard configurations; TYIR 50 OL-AL extends to 64 additional configurations for combined phase/street lighting networks.
Phase Conductor
Concentrically stranded aluminium (RM). Hard drawn for aerial mechanical strength. Available from 10mm² to 95mm² cross-section.
Neutral Carrier
Steel-aluminium composite (ACSR type). Steel core for tensile strength + aluminium layer for conductivity. Self-supporting messenger.
PVC Insulation
Weather-resistant black PVC. 70°C continuous, 160°C short-circuit. UV stabilised for decades of direct overhead exposure.
Twisted Bundle
Phase and neutral conductors twisted together. Eliminates wind clashing, reduces visual impact, single-drum installation.
ABC Advantage
No phase-to-phase short circuits from wind or wildlife. Lower electrocution risk. Reduced maintenance vs bare open-wire lines.
Street Lighting Ready
Dedicated auxiliary conductors (16–50mm²) for public lighting circuits in the same bundle — one cable, all services.
Technical Characteristics
| Rated Voltage Uo/U | 0.6/1kV (max operational 1.2kV) |
| Test Voltage | 4kV AC — 5 minutes |
| Operating Temperature Range | -40°C to +70°C (long-run operation) |
| Min. Laying Temperature | +5°C |
| Max. Short-Circuit Temperature | +160°C (max 5 seconds) |
| Phase Conductor Type | Concentrically stranded aluminium (RM) |
| Neutral Conductor Type | Steel-aluminium carrier (ACSR type) |
| Applicable Standards | ST 125-2006, SR HD 626 S1, IEC 61089 |
Applicable Standards
| Standard | Scope |
|---|---|
| ST 125-2006 | Romanian national standard for aerial bundled cables (ABC) with PVC insulation for LV overhead distribution networks. |
| SR HD 626 S1 | Harmonised European document for aerial bundled cables rated 0.6/1kV. Adopted across EU member states as equivalent national standards. |
| IEC 61089 | International standard for round wire concentric lay overhead electrical stranded conductors. Referenced for phase conductor construction. |
Technical Specifications
All data per ST 125-2006 / SR HD 626 S1. Phase conductors: concentrically stranded aluminium (RM). Neutral: steel-aluminium composite carrier (ACSR type). Insulation: weather-resistant black PVC. Configuration notation: phase cores + auxiliary/neutral cores (e.g. 3×50+2×16 = 3 phases 50mm² + 2 auxiliaries 16mm²).
| Cross Section (mm²) | Total Weight (kg/km) | Al Weight (kg/km) | Overall Dia. (mm) |
|---|---|---|---|
| TYIR — Standard Configurations | |||
| 10 + 16 | 164 | 75 | 16.0 |
| 16 + 25 | 225 | 118 | 19.0 |
| 2 + 10 | 136 | 58 | 14.4 |
| 2 + 16 | 193 | 92 | 17.4 |
| 2 + 25 | 258 | 145 | 20.0 |
| 3 × 16 + 25 | 418 | 210 | 18.0 |
| 3 × 25 + 16 | 483 | 264 | 21.0 |
| 3 × 35 | 496 | 304 | 23.9 |
| 4 × 10 | 727 | 116 | 17.4 |
| 4 × 16 | 386 | 185 | 21.0 |
| TYIR 50OL-AL — 1-4 Core (Phase Only) | |||
| 1 × 16 | 370 | 176 | 21.0 |
| 2 × 16 | 455 | 222 | 22.0 |
| 3 × 16 | 540 | 271 | 22.0 |
| 4 × 16 | 630 | 314 | 27.0 |
| 1 × 25 | 410 | 204 | 23.0 |
| 2 × 25 | 540 | 277 | 24.0 |
| 3 × 25 | 675 | 349 | 25.0 |
| 1 × 35 | 450 | 233 | 24.0 |
| 2 × 35 | 615 | 335 | 25.0 |
| 3 × 35 | 780 | 436 | 27.0 |
| 1 × 50 | 500 | 277 | 25.0 |
| 2 × 50 | 720 | 422 | 27.0 |
| 3 × 50 | 940 | 567 | 30.0 |
| 1 × 70 | 570 | 335 | 27.0 |
| 2 × 70 | 855 | 538 | 28.0 |
| 3 × 70 | 1,140 | 741 | 33.0 |
| 3 × 95 | 1,480 | 960 | 38.0 |
| TYIR 50OL-AL — Phase + Street Lighting / Auxiliary Combinations | |||
| 1 × 25 + 1 × 16 | 500 | 250 | 23.0 |
| 1 × 25 + 3 × 16 | 675 | 343 | 23.0 |
| 1 × 35 + 1 × 16 | 535 | 279 | 24.0 |
| 1 × 35 + 1 × 25 | 580 | 306 | 24.0 |
| 1 × 50 + 1 × 16 | 590 | 323 | 25.0 |
| 1 × 50 + 1 × 35 | 670 | 378 | 25.0 |
| 2 × 35 + 2 × 16 | 700 | 427 | 25.0 |
| 2 × 50 + 1 × 35 | 890 | 523 | 27.0 |
| 3 × 16 + 2 × 16 | 715 | 364 | 17.0 |
| 3 × 16 + 3 × 16 | 805 | 410 | 17.0 |
| 3 × 25 + 1 × 16 | 760 | 396 | 26.0 |
| 3 × 25 + 2 × 16 | 850 | 442 | 26.0 |
| 3 × 25 + 3 × 16 | 935 | 488 | 26.0 |
| 3 × 25 + 2 × 25 | 935 | 494 | 26.0 |
| 3 × 35 + 1 × 16 | 870 | 482 | 30.0 |
| 3 × 35 + 2 × 16 | 955 | 527 | 30.0 |
| 3 × 35 + 3 × 16 | 1,045 | 576 | 30.0 |
| 3 × 35 + 1 × 25 | 910 | 509 | 30.0 |
| 3 × 35 + 3 × 25 | 1,175 | 654 | 30.0 |
| 3 × 35 + 1 × 35 | 950 | 538 | 30.0 |
| 3 × 50 + 1 × 16 | 1,030 | 613 | 34.0 |
| 3 × 50 + 2 × 16 | 1,120 | 659 | 34.0 |
| 3 × 50 + 3 × 16 | 1,205 | 706 | 34.0 |
| 3 × 50 + 1 × 25 | 1,075 | 640 | 34.0 |
| 3 × 50 + 2 × 25 | 1,205 | 713 | 34.0 |
| 3 × 50 + 3 × 25 | 1,335 | 786 | 34.0 |
| 3 × 50 + 1 × 35 | 1,110 | 669 | 34.0 |
| 3 × 50 + 3 × 35 | 1,440 | 873 | 140.0* |
| 3 × 50 + 3 × 50 | 1,605 | 1,002 | 34.0 |
| 3 × 70 + 1 × 16 | 1,230 | 787 | 38.0 |
| 3 × 70 + 2 × 16 | 1,315 | 833 | 38.0 |
| 3 × 70 + 3 × 16 | 1,400 | 880 | 38.0 |
| 3 × 70 + 1 × 25 | 1,270 | 814 | 38.0 |
| 3 × 70 + 2 × 25 | 1,400 | 887 | 173.0* |
| 3 × 70 + 3 × 25 | 1,535 | 960 | 173.0* |
| 3 × 70 + 1 × 35 | 1,305 | 863 | 173.0* |
| 3 × 70 + 2 × 35 | 1,475 | 945 | 173.0* |
| 3 × 70 + 3 × 35 | 1,640 | 1,047 | 173.0* |
| 3 × 70 + 3 × 50 | 1,800 | 1,176 | 173.0* |
| 3 × 95 + 2 × 16 | 1,565 | 1,052 | 210.0* |
| 3 × 95 + 2 × 25 | 1,740 | 1,106 | 210.0* |
| 3 × 95 + 3 × 25 | 1,870 | 1,179 | 210.0* |
| 3 × 95 + 2 × 35 | 1,810 | 1,161 | 210.0* |
| 3 × 95 + 3 × 35 | 1,975 | 1,263 | 210.0* |
| 3 × 95 + 1 × 50 | 1,700 | 1,103 | 210.0* |
Packaging & Delivery
| Parameter | Standard |
|---|---|
| Drum Type | Export wooden drum / iron-wooden drum / as per customer requirement |
| Length per Drum | Standard drum lengths per utility specification; custom cut lengths available |
| Drum Marking | Manufacturer, type (TYIR/50OL-AL), voltage, cross-section, length, weight, drum number, ST 125-2006 mark |
| Cable End Sealing | Heat-shrink end caps to prevent moisture ingress during transport |
| Outer Protection | Weatherproof wrapping for sea freight |
| Delivery Condition | Factory-new, tested per ST 125-2006, with test certificate on request |
Typical Applications
TYIR aerial bundled cables replace bare open-wire overhead lines in LV distribution networks. The twisted insulated bundle eliminates phase-to-phase faults while the steel-aluminium neutral carrier provides self-supporting messenger capability:
Residential Distribution
Three-phase supply for household subscribers. Bundled construction prevents faults from wind, trees, and wildlife.
Rural Electrification
Cost-effective overhead for rural areas. Self-supporting neutral carrier eliminates separate catenary wire.
Street Lighting Networks
Combined phase + lighting in one bundle. 16–50mm² auxiliary cores for public lighting circuits alongside main phases.
Utility Network Upgrades
Retrofit existing bare lines with insulated bundle. Same pole infrastructure, dramatically improved safety.
Eastern European Markets
ST 125-2006 certified for Romania and neighboring countries. SR HD 626 S1 ensures EU-wide acceptance.
Industrial Site Supply
Temporary and permanent overhead power to factories, workshops, and processing plants.
