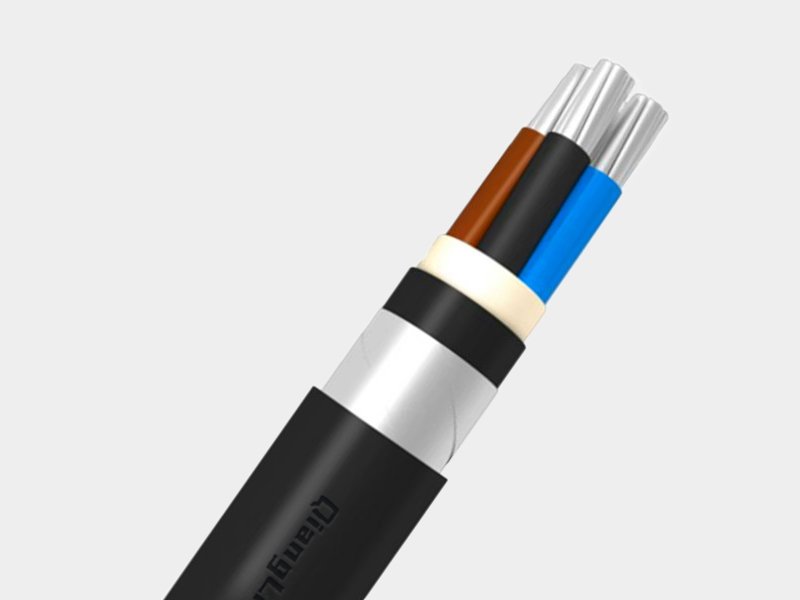

U-1000 ARVFV Cable
Conductor: Aluminium, Class 2 stranded, IEC 60228
Insulation: XLPE, rated 90°C, NF C 32-322 colour coded
Armour: Double galvanized steel tape (0.2/0.5mm)
Sheath: Flexible PVC, black, halogen <15%, CPR Eca
Number of cores: 2-5 cores, 3G/4G earth included
Standard: NF C 32-322 (primary), IEC 60502-1 equivalent to LXAV
Product Overview
U-1000 ARVFV Cable is a 0.6/1kV XLPE-insulated steel tape armoured PVC-sheathed power cable with aluminium conductor, manufactured to the French national standard NF C 32-322. Naming: U-1000 = 1000V (French designation for 0.6/1kV), A = aluminium conductor, R = rigid, V = XLPE insulation, FV = tape armour (steel or aluminium). It is the aluminium-conductor counterpart of the copper U-1000 RVFV and the French NFC equivalent of LXAV (IEC 60502-1) — sharing identical Al/XLPE/STA/PVC construction, differing only in the certifying standard. ARVFV is specified for photovoltaic applications, direct burial, cable trays, and conduit installations where cost-driven aluminium conductor and NFC certification are required.

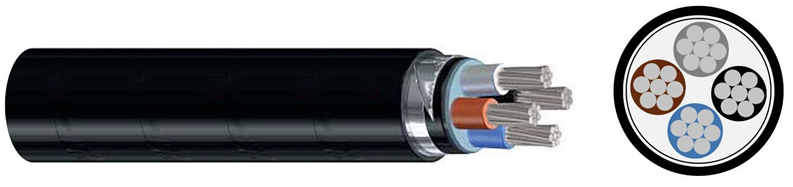

Outer Sheath — Black flexible PVC
Steel Tape Armour — Double galvanized, helically applied
PVC Bedding — Black extruded separation sheath
XLPE Insulation — 90°C, NF C 32-322 colour coded
Aluminium Conductor — Class 2 stranded per IEC 60228
Aluminium Conductor
Class 2 stranded per IEC 60228. 61% IACS at ~50% weight vs copper. Solid for ≤4mm², stranded for ≥6mm².
XLPE Insulation
90°C continuous, 250°C short-circuit. NF C 32-322 colour coded: Brown/Black/Grey/Blue + Green/Yellow.
PVC Bedding
Black extruded separation sheath between cores and armour. Protects XLPE from steel tape abrasion.
Tape Armour
Double steel tape (multi-core) or aluminium tape (single-core mandatory per NF C 32-322 for eddy current safety).
PVC Outer Sheath
Flexible PVC, black. Reduced halogen (Cl<15%), CPR Eca per EN 50575. UV resistant per UNE 211605.
Photovoltaic Rated
Specified for solar farm LV collection. Direct burial, cable tray, and conduit installations per NF C 32-322.
Technical Characteristics
| Rated Voltage | 600/1000V (0.6/1kV) — U-1000 designation |
| Max. Conductor Temperature | 90°C (continuous), 250°C (short-circuit, max 5s) |
| Min. Service Temperature | -40°C (fixed and protected) |
| Min. Bending Radius | 5 × D — the most flexible armoured cable in this voltage class |
| Flame Performance | EN 60332-1, NF C 32-070 C2 (bundled cable flame test) |
| Halogen Content | Reduced halogen — chlorine <15% |
| CPR Class | Eca per EN 50575 |
| Impact Resistance | AG2 Medium severity |
Applicable Standards & NFC Certification
| Standard | Scope |
|---|---|
| NF C 32-322 | French national standard for XLPE insulated armoured power cables 0.6/1kV. Primary standard covering U-1000 ARVFV construction and testing. |
| IEC 60502-1 | International standard. ARVFV meets all IEC 60502-1 structural requirements. Equivalent construction to LXAV under IEC certification. |
| NF C 32-070 C2 | French fire performance standard — Category 2 bundled cable test. More stringent than single-cable IEC 60332-1. |
| EN 50575 | CPR fire classification. Eca class mandatory for cables sold in EU. |
| UNE 211605 | UV resistance certification. Accepted for French outdoor and photovoltaic installations. |
Core Identification (NF C 32-322)
| Configuration | Core Colours |
|---|---|
| 1 x | Natural |
| 2 x | Blue + Brown |
| 3 G | Blue + Brown + Green/Yellow |
| 3 x | Brown + Black + Grey |
| 3 x + 1 x | Brown + Black + Grey + Blue (reduced cross-section) |
| 4 G | Brown + Black + Grey + Green/Yellow |
| 4 x | Brown + Black + Grey + Blue |
| 5 G | Brown + Black + Grey + Blue + Green/Yellow |
Technical Specifications
Aluminium conductor, XLPE insulated, steel tape armoured, PVC sheathed per NF C 32-322. Armour: 0.2mm (≤35mm²), 0.5mm (≥50mm²). Reference correction: "3×50+35" insulation "1.0/09" → "1.0/0.9".
| Cross Section (mm²) | Insulation (mm) | Armour (mm) | Sheath (mm) | O.D. (mm) | Weight (kg/km) |
|---|---|---|---|---|---|
| 2-Core | |||||
| 2 × 10 | 0.7 | 0.2 | 1.4 | 18.5 | 420 |
| 2 × 16 | 0.7 | 0.2 | 1.5 | 20.5 | 540 |
| 2 × 25 | 0.9 | 0.2 | 1.6 | 24.5 | 760 |
| 2 × 35 | 0.9 | 0.2 | 1.7 | 27.0 | 930 |
| 3-Core | |||||
| 3 × 10 | 0.7 | 0.2 | 1.5 | 19.0 | 470 |
| 3 × 16 | 0.7 | 0.2 | 1.5 | 22.0 | 590 |
| 3 × 25 | 0.9 | 0.2 | 1.6 | 26.0 | 830 |
| 3 × 35 | 0.9 | 0.2 | 1.7 | 29.0 | 1,030 |
| 3 × 50 | 0.9 | 0.2 | 1.8 | 32.5 | 1,290 |
| 3 × 70 | 1.1 | 0.2 | 2.0 | 37.5 | 1,710 |
| 3 × 95 | 1.1 | 0.5 | 2.1 | 43.5 | 2,610 |
| 3 × 120 | 1.2 | 0.5 | 2.3 | 47.5 | 3,110 |
| 3 × 150 | 1.4 | 0.5 | 2.4 | 53.0 | 3,770 |
| 3 × 185 | 1.6 | 0.5 | 2.5 | 58.0 | 4,540 |
| 3 × 240 | 1.7 | 0.5 | 2.7 | 65.5 | 5,620 |
| 3 × 300 | 1.8 | 0.5 | 2.9 | 72.0 | 6,830 |
| 3-Core + Reduced Neutral | |||||
| 3 × 50 + 35 | 1.0/0.9 | 0.2 | 1.9 | 34.5 | 1,500 |
| 3 × 70 + 50 | 1.1/0.9 | 0.2 | 2.0 | 40.0 | 2,000 |
| 3 × 95 + 50 | 1.1/1.0 | 0.5 | 2.2 | 45.0 | 2,870 |
| 3 × 120 + 70 | 1.2/1.1 | 0.5 | 2.3 | 50.0 | 3,460 |
| 3 × 150 + 70 | 1.4/1.1 | 0.5 | 2.5 | 54.0 | 4,090 |
| 3 × 185 + 70 | 1.6/1.1 | 0.5 | 2.6 | 59.0 | 4,980 |
| 3 × 240 + 95 | 1.7/1.1 | 0.5 | 2.8 | 66.0 | 6,210 |
| 4-Core | |||||
| 4 × 10 | 0.7 | 0.2 | 1.5 | 20.5 | 540 |
| 4 × 16 | 0.7 | 0.2 | 1.6 | 23.5 | 700 |
| 4 × 25 | 0.9 | 0.2 | 1.7 | 28.0 | 1,000 |
| 4 × 35 | 0.9 | 0.2 | 1.8 | 31.5 | 1,230 |
| 4 × 50 | 1.0 | 0.2 | 1.9 | 35.5 | 1,550 |
| 4 × 70 | 1.1 | 0.5 | 2.1 | 42.5 | 2,490 |
| 4 × 95 | 1.1 | 0.5 | 2.3 | 47.5 | 3,120 |
| 4 × 120 | 1.2 | 0.5 | 2.4 | 53.0 | 3,780 |
| 4 × 150 | 1.4 | 0.5 | 2.6 | 58.5 | 4,550 |
| 4 × 185 | 1.6 | 0.5 | 2.7 | 64.5 | 5,490 |
| 4 × 240 | 1.7 | 0.5 | 2.9 | 72.5 | 6,860 |
| 4 × 300 | 1.8 | 0.5 | 3.1 | 79.5 | 8,250 |
| 5-Core | |||||
| 5 × 10 | 0.7 | 0.2 | 1.6 | 22.5 | 640 |
Packaging & Delivery
Export Wooden Drum
Fumigated wooden drums. Aluminium conductor reduces total cable weight vs copper equivalent.
Iron-Wooden Drum
Reinforced composite drums for heavy cross-sections (95mm²+). Steel tape armour adds robustness.
NF C 32-322 Documentation
French-standard test certificates, CPR Eca DoP, NFC colour coding verification, material traceability.
Typical Applications
Photovoltaic LV Collection
Specified for solar farm LV AC collection circuits. NF C 32-322 certification required for French PV projects.
Direct Burial
Direct burial without additional protection per NF C 32-322. Steel tape armour guards against soil pressure and stones.
Industrial Cable Trays & Conduits
Fixed installations in industrial plants where mechanical protection is necessary. AG2 medium impact rating.
French & Francophone Markets
NF C 32-322 certified. Required for French domestic projects, Francophone Africa, and Maghreb infrastructure.
LV Power Distribution
All low-voltage power installations per NF C 32-322. Aluminium conductor reduces project material cost by 40-60% vs copper.
Cold Climate
-40°C minimum service temperature. XLPE insulation remains flexible at sub-zero temperatures unlike PVC alternatives.
