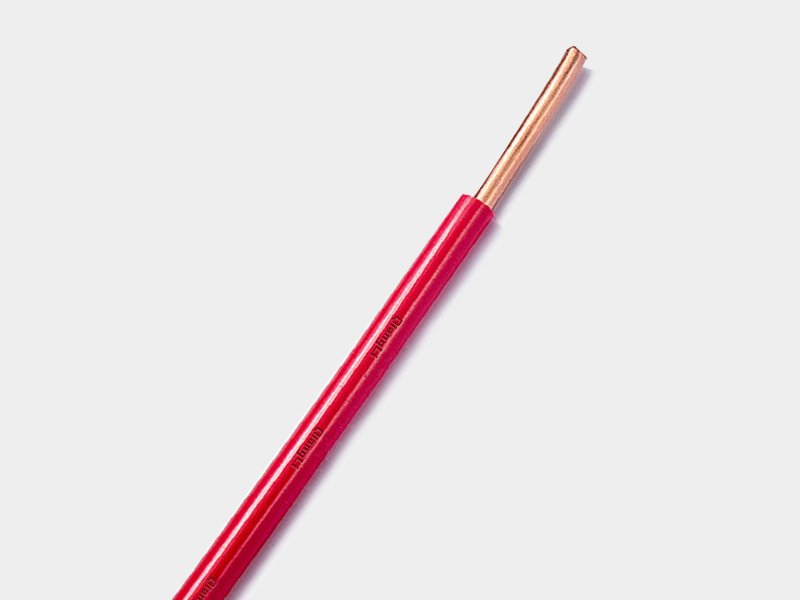

H07Z1-U Wire
Voltage: 450/750V, test 2.5kV, CPR B2ca-s1,d1,a1 Euroclass
Conductor: Class 1 solid bare copper, BS EN 60228 — simplest LSOH termination
Insulation: HFFR type TI-7 thermoplastic per EN 50363-7, 70°C continuous
Bending: 15×Ø flexing / 10×Ø static — solid wire, bend once, hold shape
Range: 4 sizes 1.5-6mm², 21-65 kg/km, 100m/roll, glass fiber sheathing option
Fire: UNE-EN 60332 + EN 60332-3-24 bunched cable test, EN 50268 smoke, EN 50267 zero halogen
Standard: BS EN 50525-3-31, CE + CPR DoP, UNE + EN + IEC triple fire certification
Product Overview
Halogen Free Wire H07Z1-U is a single-core Class 1 solid copper conductor thermoplastic LSOH building wire manufactured to BS EN 50525-3-31. The -U suffix designates a single solid bare copper core — the simplest, most cost-effective conductor form — paired with HFFR type TI-7 thermoplastic halogen-free flame retardant insulation per EN 50363-7. H07Z1-U is the solid-core companion to the flexible H07Z1-K: identical electrical and fire-safety performance (450/750V, 70°C, 160°C short-circuit, CPR B2ca-s1,d1,a1), but with a solid conductor designed for screw-down terminals and protected fixed installations where the wire, once terminated, never moves. The LSOH safety profile — zero halogen acid gas emission per UNE-EN 50267, low smoke per UNE-EN 50268, self-extinguishing per UNE-EN 60332 — makes H07Z1-U the solid LSOH wire of choice for switchboard and distribution board internal wiring in European public buildings where CPR compliance is mandatory.
The solid conductor (-U) delivers the lowest per-metre cost of any LSOH building wire — no stranding operations, simplest manufacturing process — but at the expense of flexibility. The 15×D flexing and 10×D static bending radii are wider than the 5×D of the flexible H07Z1-K, reflecting the inherent stiffness of a single solid copper core versus a multi-strand flexible bundle. For fixed installations inside equipment enclosures and protected conduits where the wire is routed once during assembly and never moved again, the wider bending radius is irrelevant — the cost advantage and zero strand-separation risk at screw terminals are the dominant selection criteria. The four-size range (1.5, 2.5, 4, 6mm²) is intentionally limited to the cross-sections most commonly used for equipment internal wiring and branch circuit connections — larger solid conductors would be impractical to bend and are therefore not manufactured in the -U variant.
Bare copper conductor — Single solid orange copper core, Class 1 per BS EN 60228 — no stranding, the defining feature of the -U solid LSOH wire
LSOH thermosetting insulation — Black ring, HFFR TI-7 thermoplastic per EN 50363-7, zero halogen, CPR B2ca-s1,d1,a1
Class 1 Solid Copper (-U)
Single solid bare copper core per BS EN 60228 Class 1. Simplest termination — no strand separation. Lowest per-metre cost in the LSOH family.
HFFR TI-7 Thermoplastic LSOH
Halogen Free Flame Retardant insulation per EN 50363-7. 70°C continuous, 160°C short-circuit. Zero halogen emission per UNE-EN 50267.
15×Ø / 10×Ø Bending
Solid conductor bending radius — bend once during assembly, hold shape forever. For protected fixed installations, not repeated flexing.
CPR B2ca-s1,d1,a1
EU Construction Products Regulation fire class — B2ca (limited fire), s1 (low smoke), d1 (no droplets), a1 (low acidity). Mandatory for EU public buildings.
4 Sizes 1.5-6mm²
Equipment internal wiring sizes only — 1.5, 2.5, 4, 6mm² (OD range 2.4-5.0mm). 100m/roll, export wooden case.
BS EN 50525-3-31
Current-generation European thermoplastic LSOH standard. CE marked, CPR Declaration of Performance certified — ready for EU public works tenders.
Technical Characteristics
| Rated Voltage | 450/750V |
| Test Voltage | 2.5 kV |
| Max. Conductor Temperature | +70°C (continuous, thermoplastic limitation) |
| Max. Short-Circuit Temperature | +160°C (max 5 seconds) |
| Flexing Bending Radius | 15 × outer diameter |
| Static Bending Radius | 10 × outer diameter |
| Flexing Temperature | ≥ +5°C |
| CPR Classification | B2ca-s1,d1,a1 per EN 50575 |
| Fire Retardant | UNE-EN 60332 / EN 60332 / IEC 60332 & UNE-EN 60332-3-24 (bunched cable test) |
| Smoke Density | UNE-EN 50268 / EN 50268 |
Applicable Standards
| Standard | Scope |
|---|---|
| BS EN 50525-3-31 | European standard for halogen-free thermoplastic insulated flexible cables 450/750V. Covers H07Z1-U solid conductor LSOH building wire. |
| EN 50363-7 | Insulation compound — HFFR type TI-7 thermoplastic halogen-free flame retardant material for low voltage energy cables. |
| BS EN 60228 Class 1 | Conductor standard — solid copper conductor specification for fixed wiring applications. |
| UNE-EN 60332 / EN 60332 / IEC 60332 | Single cable vertical flame test (IEC 60332-1) + bunched cable vertical flame spread test (EN 60332-3-24) — dual fire certification. |
| UNE-EN 50267 / EN 50267 | Halogen acid gas emission — zero HCl/HF/HBr certified. Spanish (UNE) and CENELEC (EN) dual-standard testing. |
LSOH Family Standards Map
| Type | Standard | Class | Insulation | Temp | Bend | Range |
|---|---|---|---|---|---|---|
| H07Z1-U | EN 50525-3-31 | Class 1 (solid) | HFFR TI-7 (thermo) | 70°C | 15×/10×Ø | 1.5-6mm² |
| H07Z1-K | EN 50525-3-31 | Class 5 (flexible) | HFFR TI-7 (thermo) | 70°C | 5×D | 1.5-240mm² |
| H05Z-U / H07Z-U | VDE 0282-9 | Class 1 (solid) | XLPE (thermoset) | 90°C | 15×/10×Ø | 0.5-10mm² |
| H07Z-R | HD 22.9 S2 | Class 2 (stranded) | XLPE EI5 (thermoset) | 90°C | 8×D | 1.5-240mm² |
| H05Z-K / H07Z-K | HD 22.9 S2 | Class 5 (flexible) | XLPE EI5 (thermoset) | 90°C | 8×D | 0.5-240mm² |
| HFIX | KS C 3341 | Class 1 & 2 | Polyolefin | 90°C | 4×D | 1.5-300mm² |
Technical Specifications
Class 1 solid bare copper per BS EN 60228. HFFR type TI-7 thermoplastic LSOH insulation per EN 50363-7. All 4 sizes single core, 100m per roll. Glass fiber sheathing option available on request.
| Cross Section (No. × mm²) | Insulation (mm) | Overall Dia. (mm) | Copper Weight (kg/km) | Total Weight (kg/km) | 20°C Res. (Ω/km) |
|---|---|---|---|---|---|
| 1 × 1.5 | 0.7 | 2.8 | 14.4 | 20.9 | 12.1 |
| 1 × 2.5 | 0.7 | 3.4 | 24 | 31.5 | 7.41 |
| 1 × 4 | 0.7 | 3.8 | 38 | 47.7 | 4.61 |
| 1 × 6 | 0.7 | 4.4 | 58 | 65.2 | 3.08 |
Packaging & Delivery
| Parameter | Standard |
|---|---|
| Package | 100m per roll, export wooden case & pallet; optional glass fiber sheathing for additional mechanical protection |
| Roll Marking | Manufacturer, H07Z1-U, 450/750V, LSOH HFFR, CPR B2ca-s1,d1,a1, cross-section, length, weight, batch, CE/CPR/UNE marks |
| Colour Options | Standard LSOH identification colours |
| Outer Protection | Wooden case |
| Delivery Condition | Factory-new, tested per BS EN 50525-3-31, CPR DoP certified, UNE & CE marked |
Typical Applications
H07Z1-U solid LSOH wire is the specialist fixed-installation wire for European equipment and switchboard manufacturers where solid copper termination reliability and CPR compliance converge:
Switchboard Internal Wiring
Solid conductor for busbar-to-terminal connections — zero strand separation risk under screw terminals. Critical for quality-controlled switchgear assembly lines.
EU Public Building Equipment
CPR B2ca-s1,d1,a1 certification enables use in equipment installed in European public buildings — mandatory compliance since the 2017 CPR deadline.
Panel Builder Assembly
Solid LSOH wire for volume panel assembly — lowest rework rate from strand-related terminal failures. Preferred by European panel builders for fixed internal wiring.
Triple Fire Standard Certified
UNE-EN 60332 (single cable) + EN 60332-3-24 (bunched cable) + EN 50268 (low smoke) + EN 50267 (zero halogen) — the most comprehensive LSOH fire test suite.
EN 50525 Current Standard
Manufactured to the current-generation European LSOH standard — not the legacy HD 22.9 family. CPR DoP certified and traceable.
Lowest Cost LSOH Wire
4 solid sizes only — the simplest LSOH manufacturing process delivers the lowest per-metre cost. Economic LSOH compliance for fixed internal wiring.
